ARG83523
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1)
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) for ELISA and Mouse
Component
| Cat No | Component Name | Package | Temp |
|---|---|---|---|
| ARG83523-01 | Antibody Coated Microplate | 8 X 12 strips | 4°C |
| ARG83523-02 | Standards Mixture | 3 vials | 4°C |
| ARG83523-03 | 10X Antibody Conjugate Mixture | 1.2 ml | ≤ -20°C |
| ARG83523-04 | 40X HRP-Streptavidin solution | 300 µl | 4°C |
| ARG83523-05 | Standard/Sample Diluent Buffer | 30 ml | 4°C |
| ARG83523-06 | Antibody Diluent Buffer | 35 ml | 4°C |
| ARG83523-07 | 10X Wash Buffer | 50 ml | 4°C |
| ARG83523-08 | TMB substrate | 12 ml | 4°C (protect from light) |
| ARG83523-09 | STOP solution | 12 ml | 4°C |
| ARG83523-10 | Plate sealer | 3 strips | Room temperature |
Overview
| Product Description | ARG83523 arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) is an Enzyme Immunoassay kit for the quantification of IFN gamma, IL4, IL6, IL10, IL12(p70), GM-CSF, TNF alpha, MCP1 in Mouse serum, plasma and cell culture supernatants. See all Multiplex ELISA kits |
|---|---|
| Tested Reactivity | Ms |
| Tested Application | ELISA |
| Target Name | M1/M2/MDSC Cytokine |
| Conjugation | HRP |
| Conjugation Note | Substrate: TMB and read at 450 nm. |
| Sensitivity | IFN gamma: 15.6 pg/ml IL4: 15.6 pg/ml IL6: 31.25 pg/ml IL10: 7.8 pg/ml IL12: 31.25 pg/ml GM-CSF: 7.8 pg/ml TNF alpha: 15.6 pg/ml MCP1: 3.9 pg/ml |
| Sample Type | Serum, plasma and cell culture supernatants. |
| Standard Range | IFN gamma: 31.25 - 1000 pg/ml IL4: 31.25 - 1000 pg/ml IL6: 62.5 - 2000 pg/ml IL10: 15.6 - 500 pg/ml IL12: 62.5 - 2000 pg/ml GM - CSF: 15.6 - 500 pg/ml TNF alpha: 31.25 - 1000 pg/ml MCP1: 7.8 - 250 pg/ml |
| Sample Volume | 50 µl |
Application Instructions
| Assay Time | 4.5 hours |
|---|
Properties
| Form | 96 well |
|---|---|
| Storage Instruction | Store components at 4°C or -20°C. Keep microplate wells sealed in a dry bag with desiccants. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components. |
| Note | For laboratory research only, not for drug, diagnostic or other use. |
Bioinformation
| Gene Symbol | IFN gamma; IL4; IL6; IL10; IL12; GM-CSF; TNF alpha; MCP1 |
|---|---|
| Highlight | Related news: M1/M2 Cytokine Multiplex ELISA Kit is launched; |
Images (9) Click the Picture to Zoom In
-

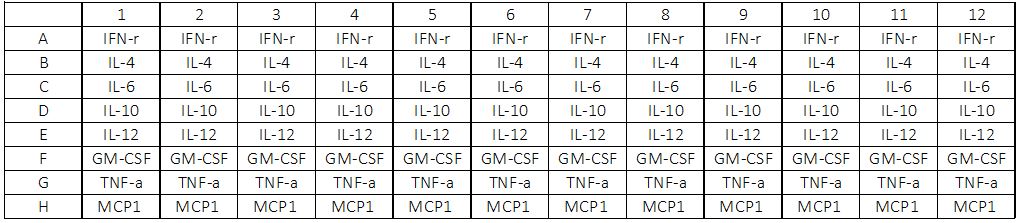

Antibodies Coating Pattern In Microtiter Plate of arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IGM-CSF, IFN gamma, IL4, IL6, IL10, IL12, MCP1)
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

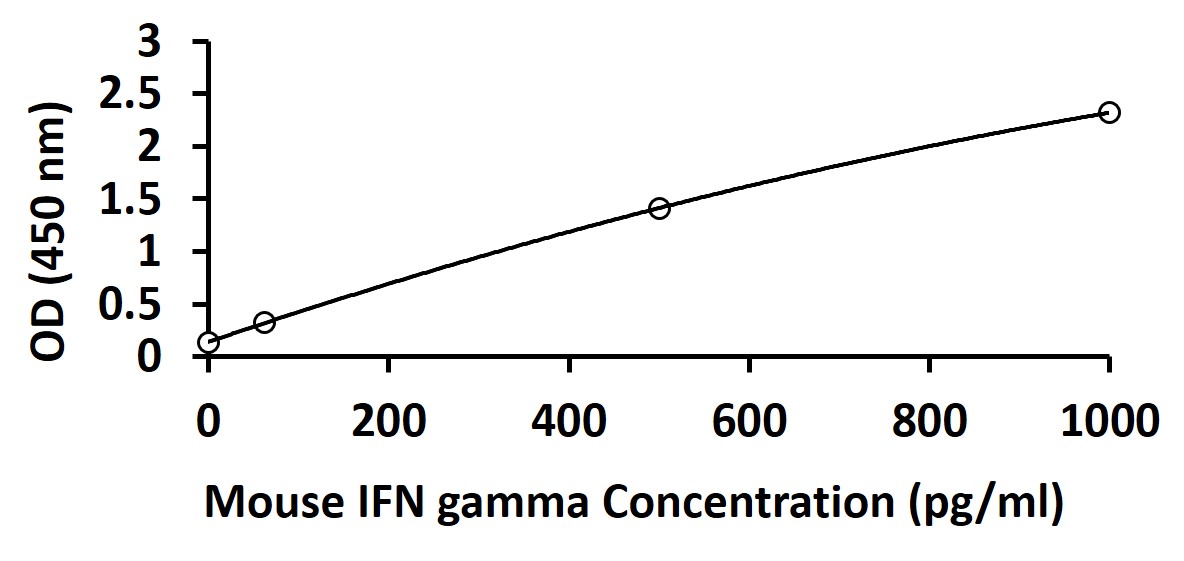

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IFN gamma run with optical density reading at 450 nm.
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

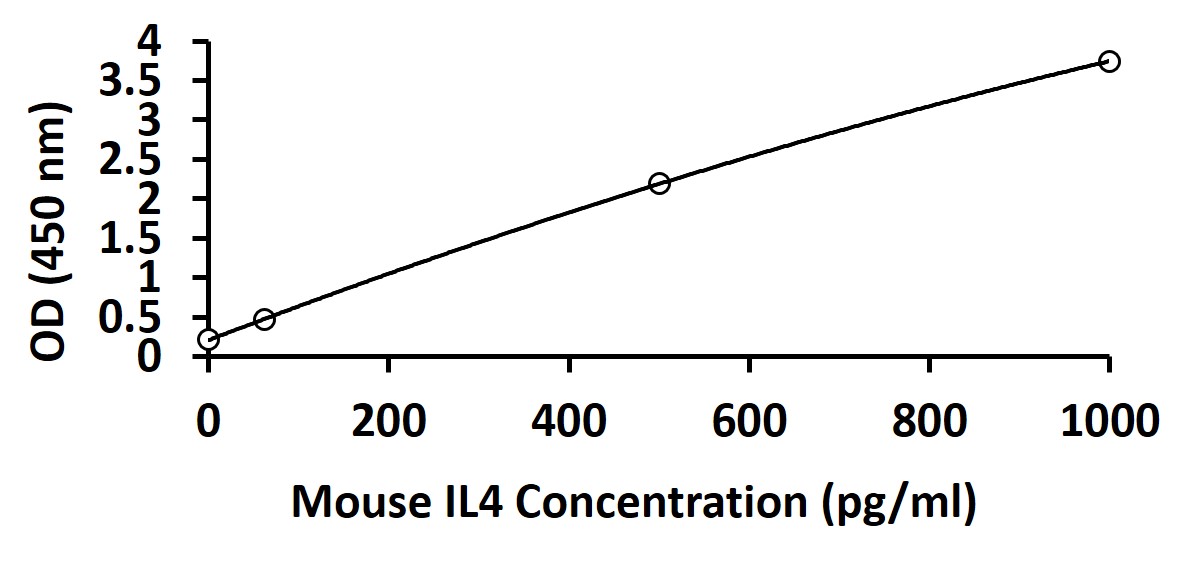

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL4 run with optical density reading at 450 nm.
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

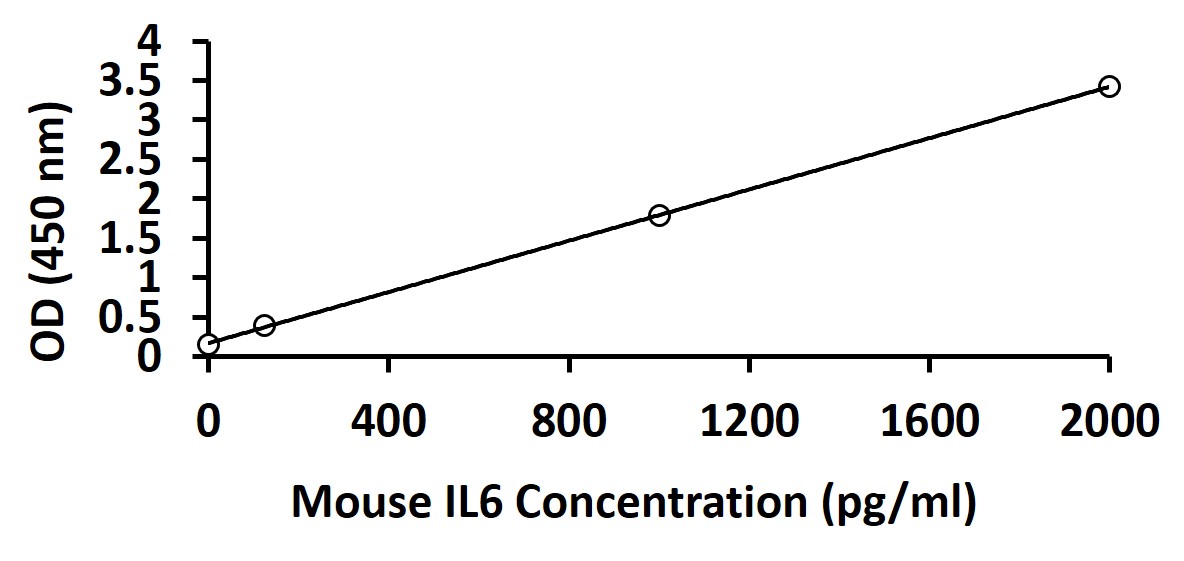

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL6 run with optical density reading at 450 nm.
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

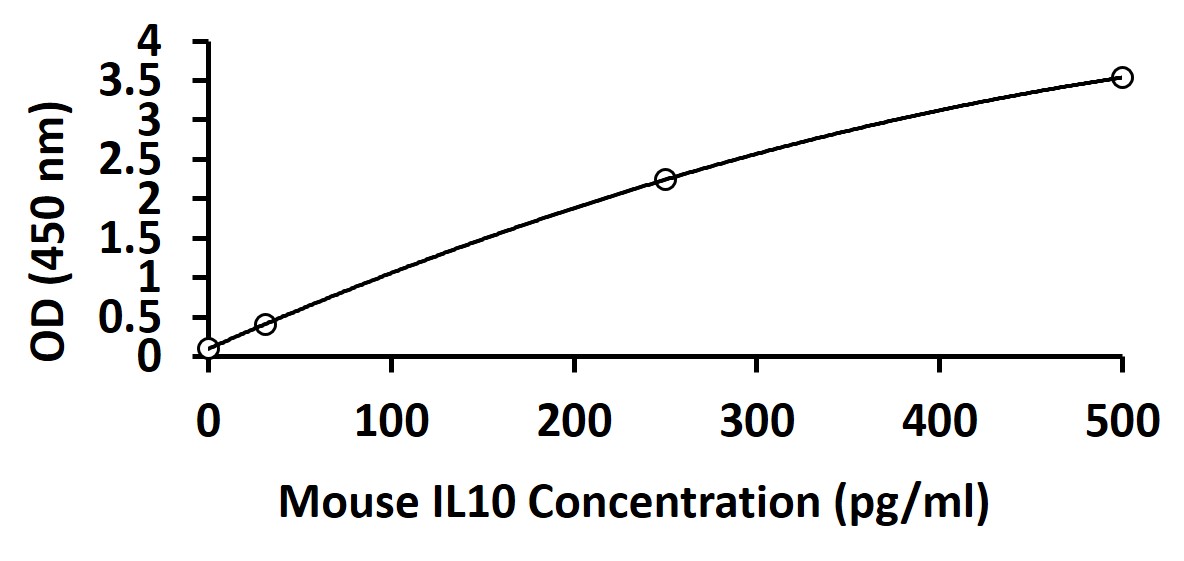

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL10 run with optical density reading at 450 nm.
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

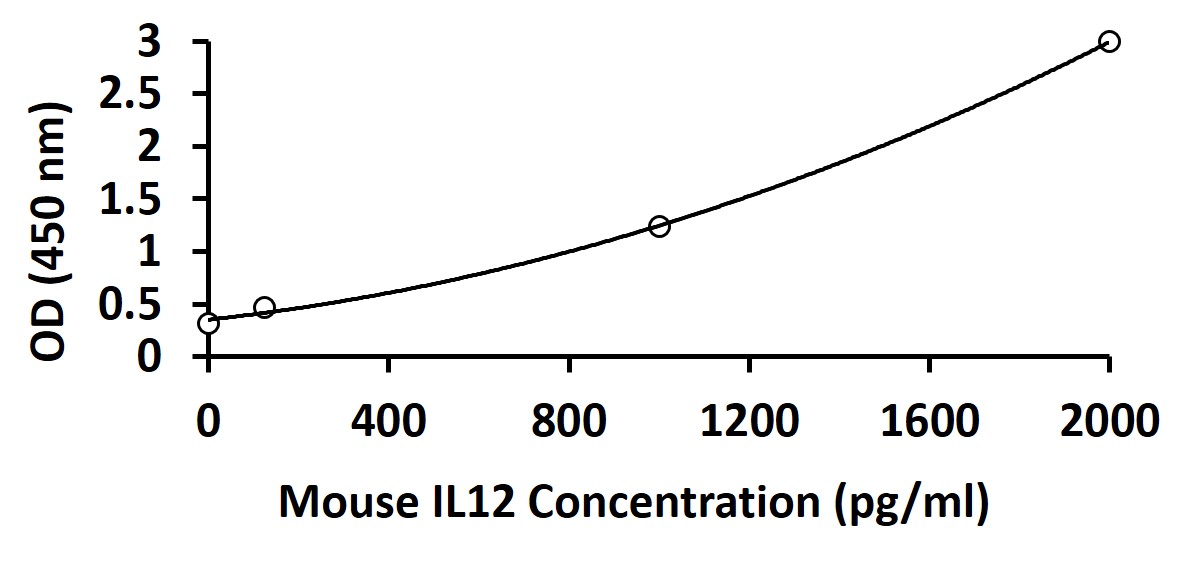

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse IL12 run with optical density reading at 450 nm.
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

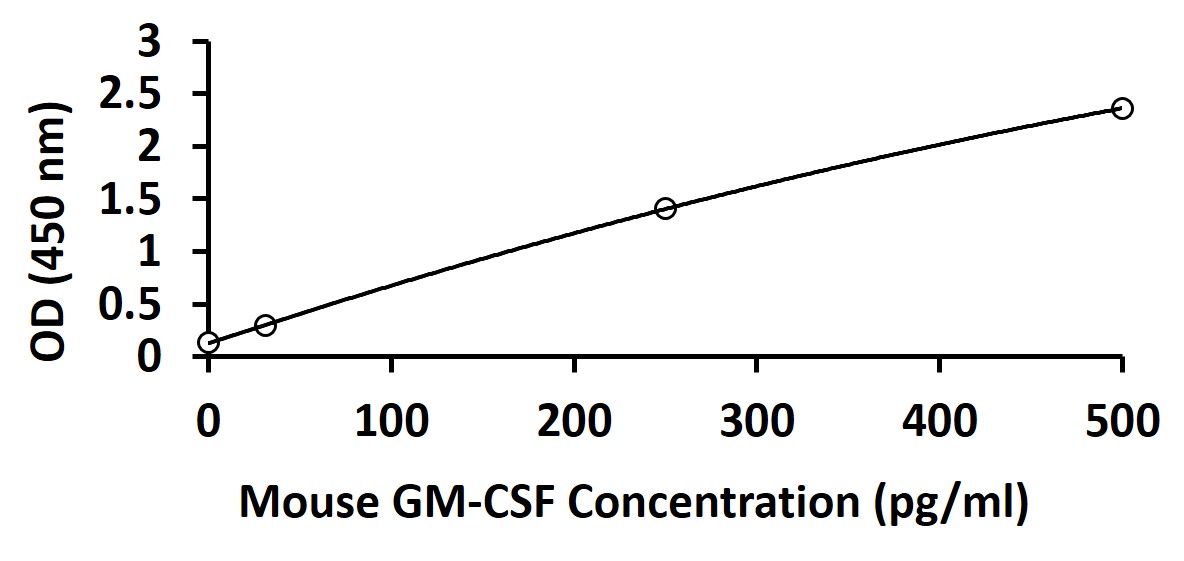

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse GM-CSF run with optical density reading at 450 nm.
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) standard curve image

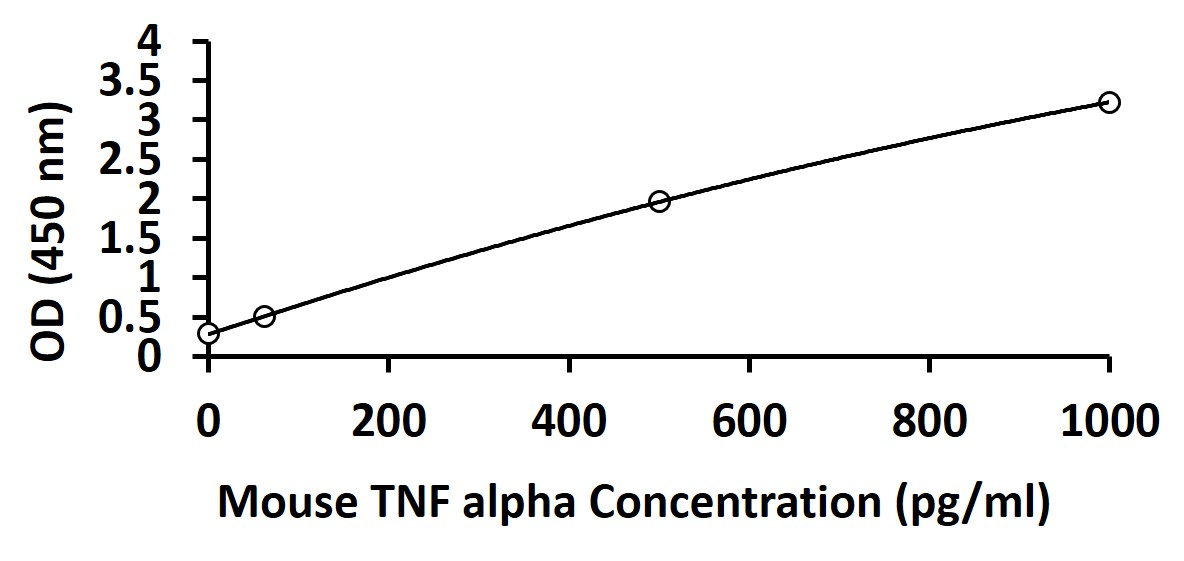

arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse TNF alpha run with optical density reading at 450 nm.
-
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse MCP1 run with optical density reading at 450 nm.
arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1) results of a typical standard for Mouse MCP1 run with optical density reading at 450 nm.
| Title | Download Link |
|---|---|
| ARG83523 arigoPLEX® Mouse M1/M2/MDSC Cytokine Multiplex ELISA Kit (IFN gamma, IL4, IL6, IL10, IL12, GM-CSF, TNF alpha, MCP1, TNF alpha) User manual |
 Download
|
