ARG83516
arigoPLEX® Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha)
arigoPLEX® Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) for ELISA and Human
Overview
Product Description | ARG83516 arigoPLEX® Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) is an Enzyme Immunoassay kit for the semi-quantification of IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22 and TNF alpha in serum, plasma and cell culture supernatants. See all Multiplex ELISA kits |
---|---|
Tested Reactivity | Hu |
Tested Application | ELISA |
Specificity | For simultaneous quantitative determination of T helper cell differentiation cytokines, including IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22 and TNF alpha. |
Target Name | Th1/Th2/Th17/Treg Multiplex |
Conjugation | HRP |
Conjugation Note | Substrate: TMB and read at 450 nm. |
Sensitivity | IFN gamma: 3.9 pg/ml IL2: 3.9 pg/ml IL4: 3.9 pg/ml IL10: 3.9 pg/ml IL13: 3.9 pg/ml IL17: 7.8 pg/ml IL22: 3.9 pg/ml TNF alpha: 7.8 pg/ml |
Detection Range | IFN gamma: 7.8-500 pg/ml IL2: 7.8-500 pg/ml IL4: 7.8-500 pg/ml IL10: 7.8-500 pg/ml IL13: 7.8-500 pg/ml IL17: 15.6-1000 pg/ml IL22: 7.8-500 pg/ml TNF alpha: 15.6-1000 pg/ml |
Sample Type | Serum, plasma and cell culture supernatants. |
Sample Volume | 50 µl |
Application Instructions
Assay Time | ~ 4.5 hours |
---|
Properties
Form | 96 well |
---|---|
Storage Instruction | Store 100X Antibody Conjugate Mixture at -20°C, all other Components at 2-8°C all times. Keep microplate wells sealed in a dry bag with desiccants. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components. |
Note | For laboratory research only, not for drug, diagnostic or other use. |
Bioinformation
Highlight | Related Product: IFN gamma antibodies; IL2 antibodies; IL6 antibodies; IL10 antibodies; IL13 antibodies; IL17 antibodies; IL22 antibodies; TNF alpha antibodies; New ELISA data calculation tool: Simplify the ELISA analysis by GainData |
---|
Images (9) Click the Picture to Zoom In
-

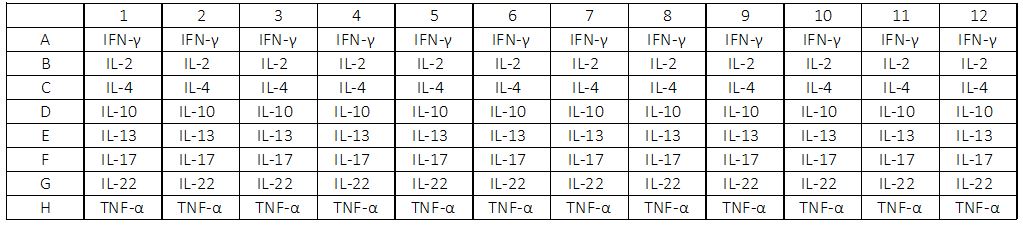

Antibodies Coating Pattern In Microtiter Plate of ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha)
-

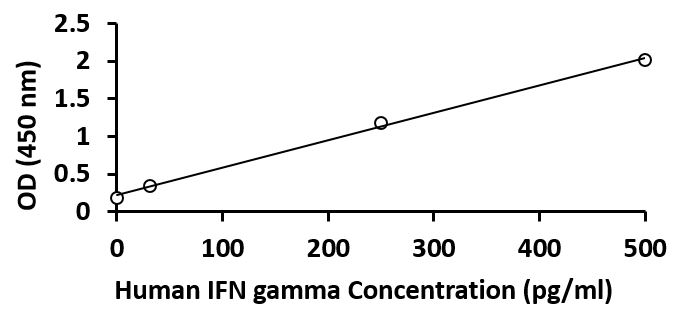

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

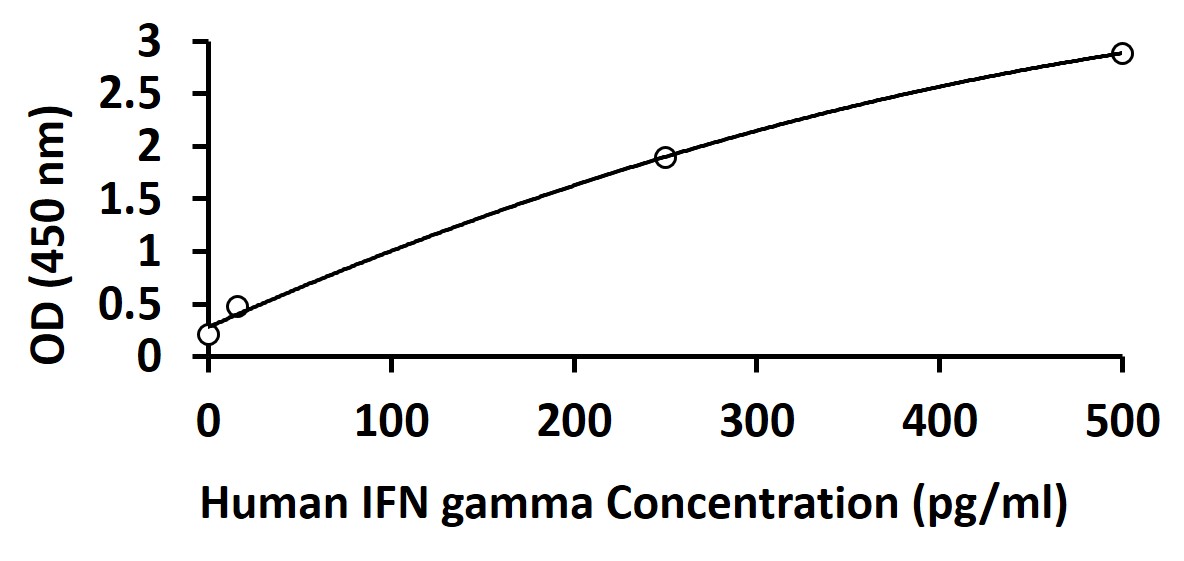

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human IFN gamma run with optical density reading at 450 nm.
-

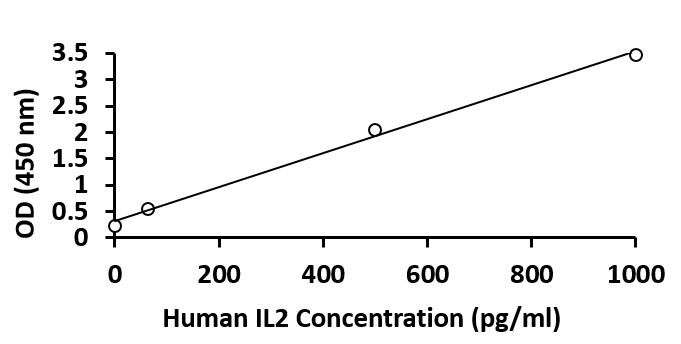

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

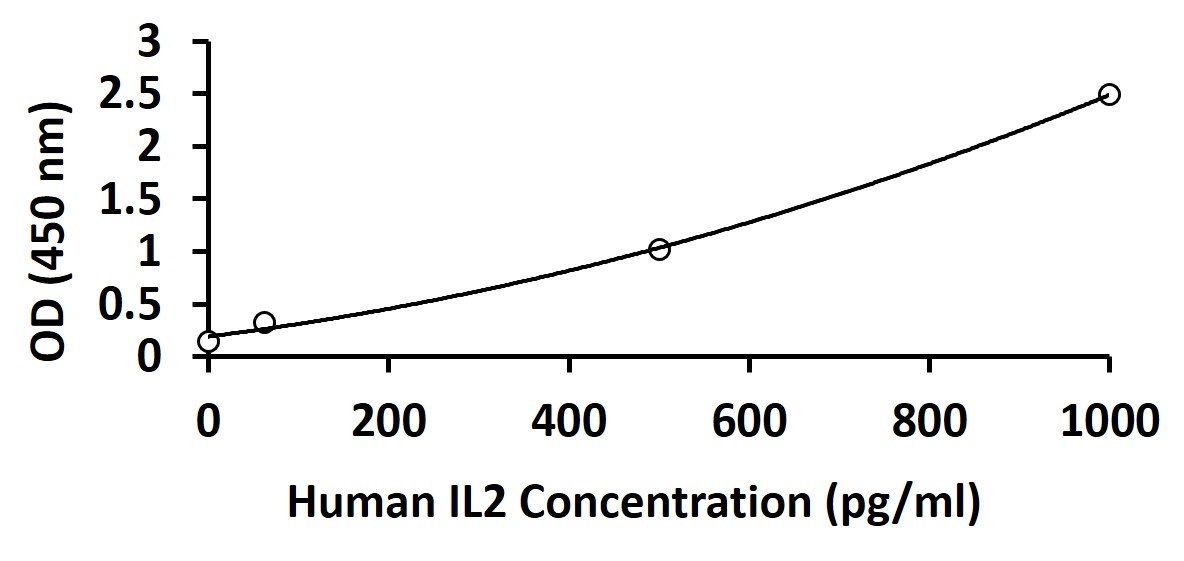

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human IL2 run with optical density reading at 450 nm.
-

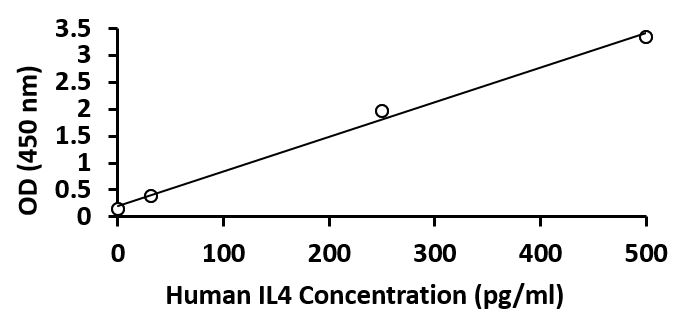

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

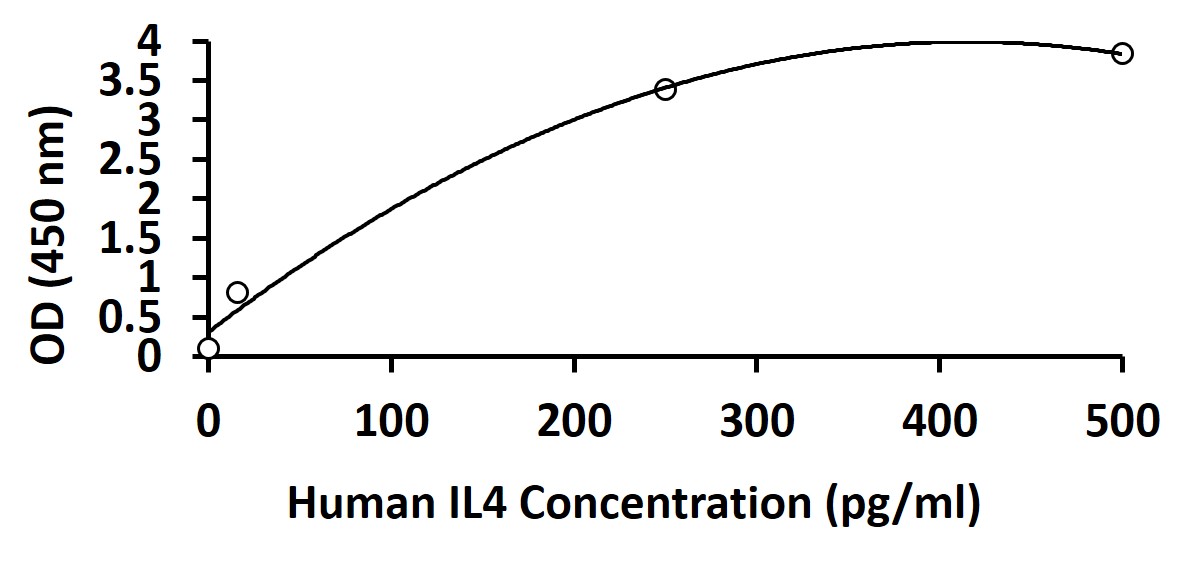

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human IL4 run with optical density reading at 450 nm.
-
ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

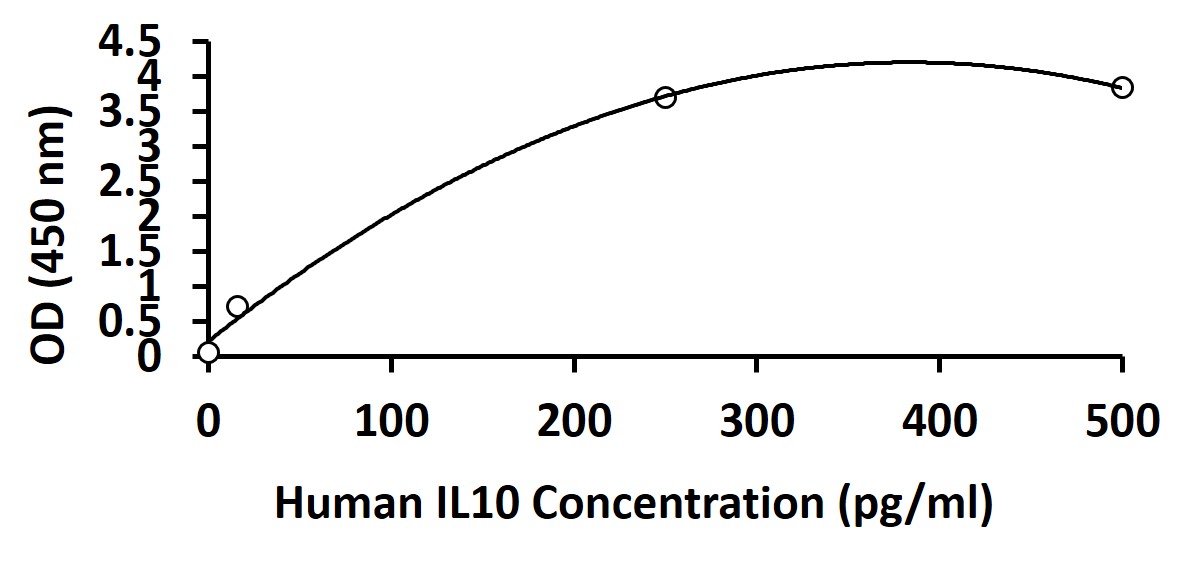

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human IL10 run with optical density reading at 450 nm.
-

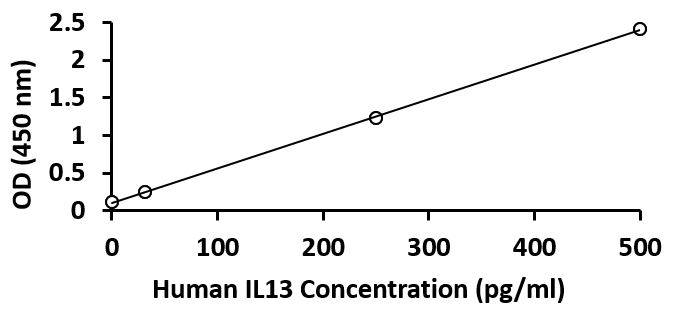

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

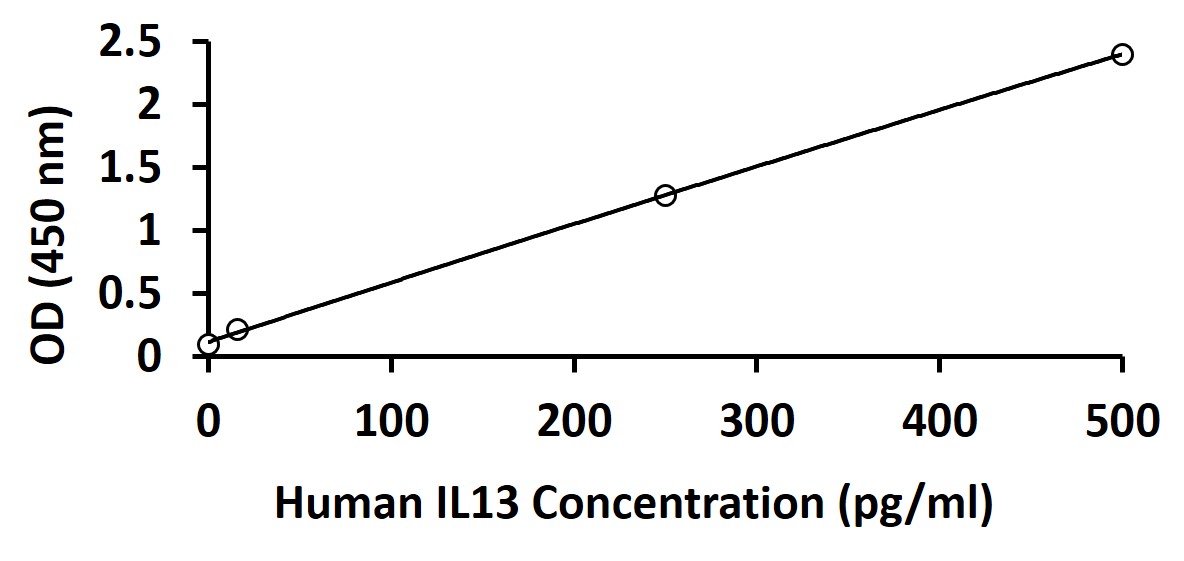

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human IL13 run with optical density reading at 450 nm.
-

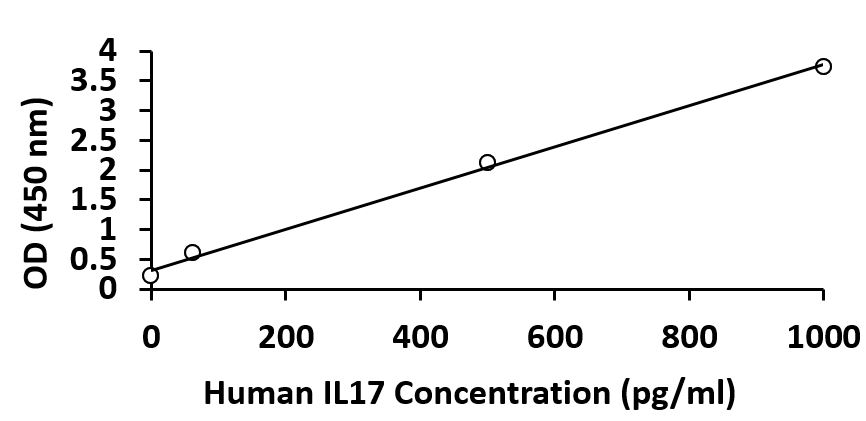

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

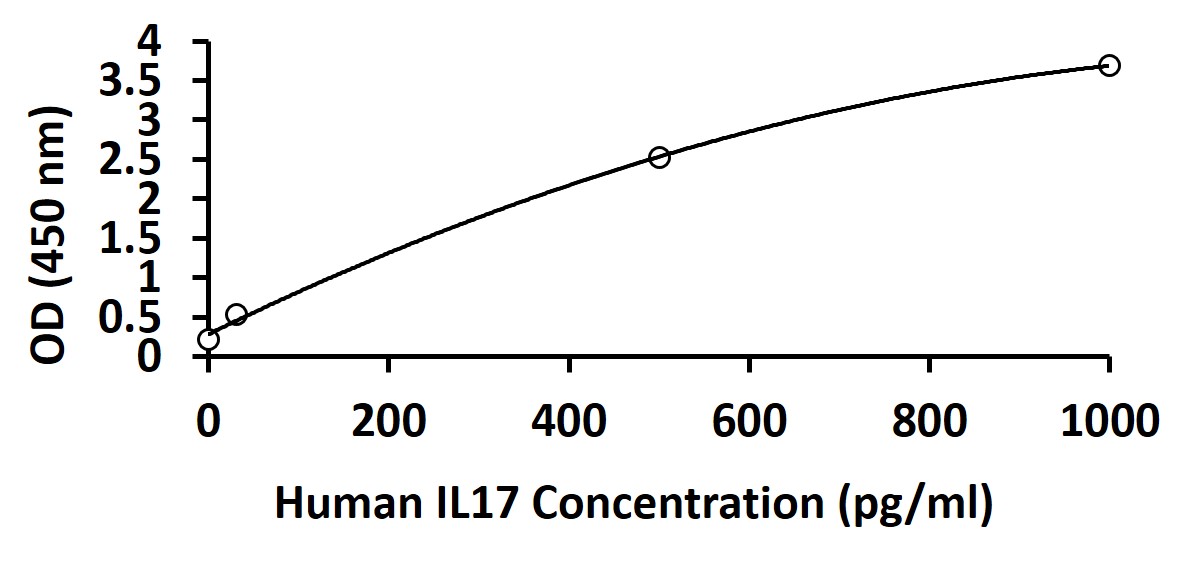

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human IL17 run with optical density reading at 450 nm.
-
ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

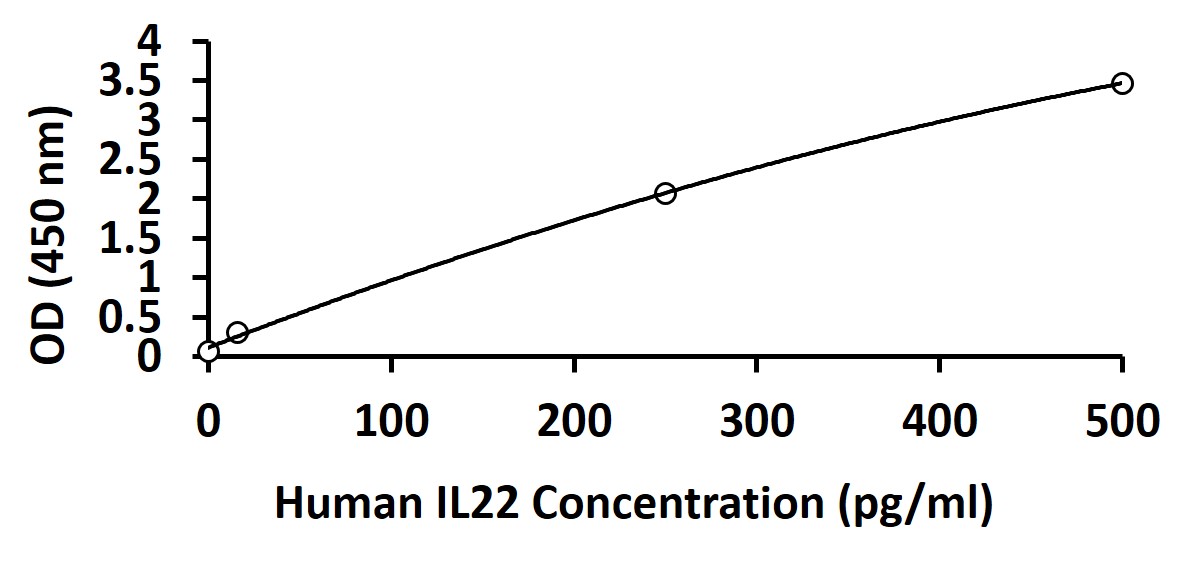

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human IL22 run with optical density reading at 450 nm.
-
ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) standard curve image

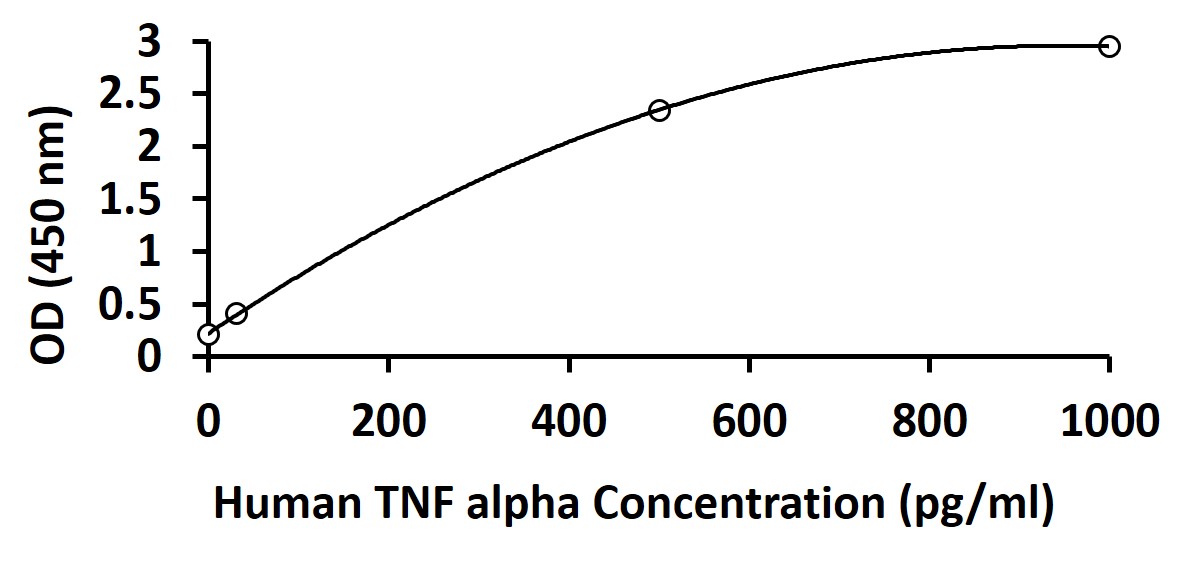

ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) results of a typical standard for Human TNF alpha run with optical density reading at 450 nm.
Title | Download Link |
---|---|
ARG83516 Human Th1/Th2/Th17/Treg Multiplex ELISA Kit (IFN gamma, IL2, IL4, IL10, IL13, IL17, IL22, TNF alpha) User manual | Download |
