ARG65720

anti-HLA DR antibody [L243]

anti-HLA DR antibody [L243] for CyTOF®-candidate,Flow cytometry,Functional study,ICC/IF,IHC-Frozen sections,IHC-Formalin-fixed paraffin-embedded sections,Immunoprecipitation,Western blot and Human,Baboon,Chimpanzee,Dog,Monkey,Primates

Immune System antibody

Overview

Product Description Mouse Monoclonal antibody [L243] recognizes HLA DR
Tested Reactivity Hu, Bb, Chimp, Dog, Mk, NHuPrm
Tested Application CyTOF®-candidate, FACS, FuncSt, ICC/IF, IHC-Fr, IHC-P, IP, WB
Specificity This antibody recognizes specifically HLA-DR molecules, both peptide-loaded and empty.
Host Mouse
Clonality Monoclonal
Clone L243
Isotype IgG2a
Target Name HLA DR
Antigen Species Human
Immunogen Human B lymphocytes
Conjugation Un-conjugated
Alternate Names MLRW; HLA class II histocompatibility antigen, DR alpha chain; HLA-DRA1; MHC class II antigen DRA

Application Instructions

Application Suggestion
Tested Application Dilution
CyTOF®-candidateAssay-dependent
FACS1 - 4 µg/ml
FuncStAssay-dependent
ICC/IFAssay-dependent
IHC-FrAssay-dependent
IHC-PAssay-dependent
IPAssay-dependent
WBAssay-dependent
Application Note * The dilutions indicate recommended starting dilutions and the optimal dilutions or concentrations should be determined by the scientist.

Properties

Form Liquid
Purification Purification with Protein A.
Purity > 95% (by SDS-PAGE)
Buffer PBS (pH 7.4) and 15 mM Sodium azide
Preservative 15 mM Sodium azide
Concentration 1 mg/ml
Storage Instruction For continuous use, store undiluted antibody at 2-8°C for up to a week. For long-term storage, aliquot and store at -20°C or below. Storage in frost free freezers is not recommended. Avoid repeated freeze/thaw cycles. Suggest spin the vial prior to opening. The antibody solution should be gently mixed before use.
Note For laboratory research only, not for drug, diagnostic or other use.

Bioinformation

Database Links

GeneID: 3122 Human HLA-DRA

Swiss-port # P01903 Human HLA class II histocompatibility antigen, DR alpha chain

Gene Symbol HLA-DRA
Gene Full Name major histocompatibility complex, class II, DR alpha
Background HLA-DRA is one of the HLA class II alpha chain paralogues. This class II molecule is a heterodimer consisting of an alpha and a beta chain, both anchored in the membrane. It plays a central role in the immune system by presenting peptides derived from extracellular proteins. Class II molecules are expressed in antigen presenting cells (APC: B lymphocytes, dendritic cells, macrophages). The alpha chain is approximately 33-35 kDa and its gene contains 5 exons. Exon 1 encodes the leader peptide, exons 2 and 3 encode the two extracellular domains, and exon 4 encodes the transmembrane domain and the cytoplasmic tail. DRA does not have polymorphisms in the peptide binding part and acts as the sole alpha chain for DRB1, DRB3, DRB4 and DRB5. [provided by RefSeq, Jul 2008]
Function Binds peptides derived from antigens that access the endocytic route of antigen presenting cells (APC) and presents them on the cell surface for recognition by the CD4 T-cells. The peptide binding cleft accommodates peptides of 10-30 residues. The peptides presented by MHC class II molecules are generated mostly by degradation of proteins that access the endocytic route, where they are processed by lysosomal proteases and other hydrolases. Exogenous antigens that have been endocytosed by the APC are thus readily available for presentation via MHC II molecules, and for this reason this antigen presentation pathway is usually referred to as exogenous. As membrane proteins on their way to degradation in lysosomes as part of their normal turn-over are also contained in the endosomal/lysosomal compartments, exogenous antigens must compete with those derived from endogenous components. Autophagy is also a source of endogenous peptides, autophagosomes constitutively fuse with MHC class II loading compartments. In addition to APCs, other cells of the gastrointestinal tract, such as epithelial cells, express MHC class II molecules and CD74 and act as APCs, which is an unusual trait of the GI tract. To produce a MHC class II molecule that presents an antigen, three MHC class II molecules (heterodimers of an alpha and a beta chain) associate with a CD74 trimer in the ER to form a heterononamer. Soon after the entry of this complex into the endosomal/lysosomal system where antigen processing occurs, CD74 undergoes a sequential degradation by various proteases, including CTSS and CTSL, leaving a small fragment termed CLIP (class-II-associated invariant chain peptide). The removal of CLIP is facilitated by HLA-DM via direct binding to the alpha-beta-CLIP complex so that CLIP is released. HLA-DM stabilizes MHC class II molecules until primary high affinity antigenic peptides are bound. The MHC II molecule bound to a peptide is then transported to the cell membrane surface. In B-cells, the interaction between HLA-DM and MHC class II molecules is regulated by HLA-DO. Primary dendritic cells (DCs) also to express HLA-DO. Lysosomal microenvironment has been implicated in the regulation of antigen loading into MHC II molecules, increased acidification produces increased proteolysis and efficient peptide loading. [UniProt]
Highlight Related products:
HLA DR antibodies; Anti-Mouse IgG secondary antibodies;
Related news:
CyTOF-candidate Antibodies
Research Area Immune System antibody
Calculated MW 29 kDa
PTM Ubiquitinated by MARCH1 or MARCH8 at Lys-244 leading to down-regulation of MHC class II. When associated with ubiquitination of the beta subunit of HLA-DR: HLA-DRB4 'Lys-254', the down-regulation of MHC class II may be highly effective.

Images (1) Click the Picture to Zoom In

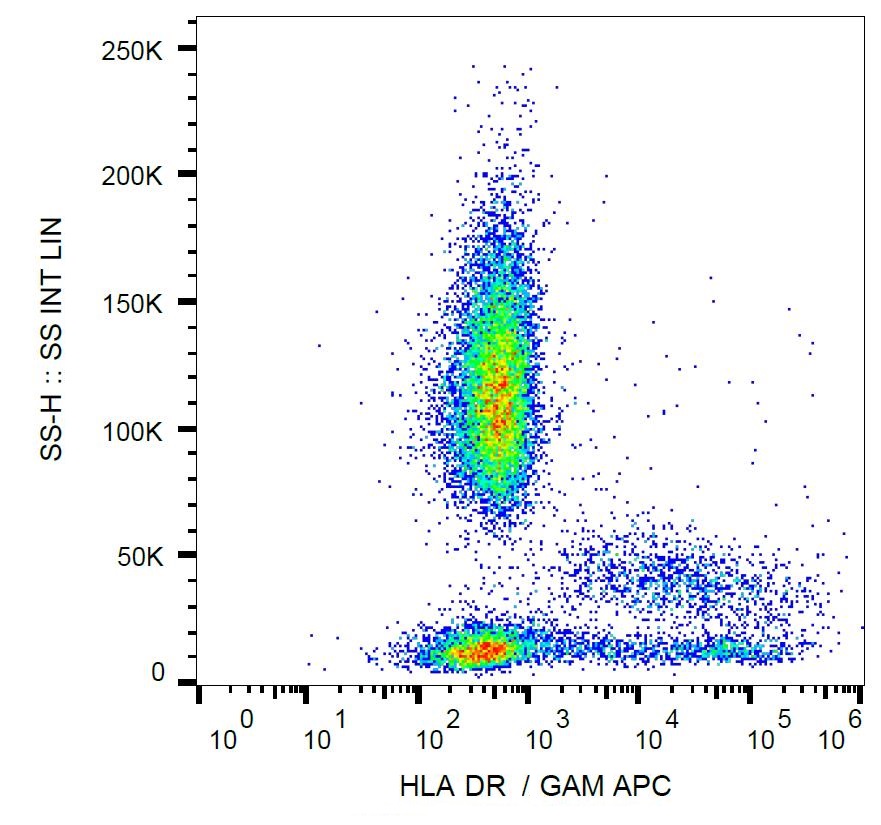

  • ARG65720 anti-HLA DR antibody [L243] FACS image

    Flow Cytometry: Human peripheral blood stained with ARG65720 anti-HLA DR antibody [L243], followed by incubation with APC labelled Goat anti-Mouse secondary antibody.
