ARG80188
Human CXCL16 ELISA Kit
Human CXCL16 ELISA Kit for ELISA and Human
Immune System kit
Component
| Cat No | Component Name | Package | Temp |
|---|---|---|---|
| ARG80188-001 | Antibody-coated microplate | 8 X 12 strips | 4°C. Unused strips should be sealed tightly in the air-tight pouch. |
| ARG80188-002 | Standard (Lyophilized) | 3 X 3 ng/vial | 4°C |
| ARG80188-003 | Standard diluent buffer | 20 ml | 4°C |
| ARG80188-004 | Antibody conjugate concentrate | 400 µl | 4°C |
| ARG80188-005 | Antibody diluent buffer | 16 ml | 4°C |
| ARG80188-006 | HRP-Streptavidin concentrate | 400 µl | 4°C (Protect from light) |
| ARG80188-007 | HRP-Streptavidin diluent buffer | 16 ml | 4°C |
| ARG80188-008 | 20X Wash buffer | 50 ml | 4°C |
| ARG80188-009 | TMB substrate | 12ml | 4°C (Protect from light) |
| ARG80188-010 | STOP solution | 12ml | 4°C |
| ARG80188-011 | Plate sealer | 4 strips | Room temperature |
Overview
| Product Description | ARG80188 Human CXCL16 ELISA Kit is an Enzyme Immunoassay kit for the quantification of Human CXCL16 in serum, plasma and cell culture supernatants. |
|---|---|
| Tested Reactivity | Hu |
| Tested Application | ELISA |
| Specificity | No significant cross-reactivity or interference with Human GRO (aa 35-107)；mouse BLC/BCA-1 IL-8 6Ckine, CTACK Lymphotactin CXCL16 |
| Target Name | CXCL16 |
| Conjugation | HRP |
| Conjugation Note | Substrate: TMB and read at 450 nm |
| Sensitivity | 4 pg/ml |
| Sample Type | Serum, plasma and cell culture supernatants. |
| Standard Range | 7.8 - 500 pg/ml |
| Sample Volume | 100 µl |
| Precision | CV: less than10% |
| Alternate Names | Transmembrane chemokine CXCL16; CXCLG16; C-X-C motif chemokine 16; SRPSOX; Scavenger receptor for phosphatidylserine and oxidized low density lipoprotein; SR-PSOX; Small-inducible cytokine B16 |
Application Instructions
| Assay Time | 4 hours |
|---|
Properties
| Form | 96 well |
|---|---|
| Storage Instruction | Store the kit at 2-8°C. Keep microplate wells sealed in a dry bag with desiccants. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components. |
| Note | For laboratory research only, not for drug, diagnostic or other use. |
Bioinformation
| Database Links | |
|---|---|
| Gene Symbol | CXCL16 |
| Gene Full Name | chemokine (C-X-C motif) ligand 16 |
| Background | CXCL16 is a member of the CXC chemokine family and signals through the CXCR6 receptor. CXCL16 may play a role in attracting lymphocyte subsets during inflammation and may facilitate certain immune responses. The chemokine domain of CXCL16 contains six cysteine residues including the four highly conserved cysteine residues characteristic of CXC chemokines. The CXCL16 gene codes for a 273 amino acid polypeptide, which includes a 29 amino acid cytoplasmic domain and transmembrane sequence containing approximately 20 amino acids. The extracellular portion of CXCL16 contains a chemokines domain and an extended C-terminal mucin-like stalk sequence. The extracellular domain contains 89 amino acid residues (86 a.a. residues for the murine homolog). Recombinant human CXCL16 is a 10.1 kDa protein containing 89 amino acid residues. |
| Highlight | Related products: CXCL antibodies; CXCL ELISA Kits; CXCL Duos / Panels; CXCL recombinant proteins; New ELISA data calculation tool: Simplify the ELISA analysis by GainData |
| Research Area | Immune System kit |
| PTM | Glycosylated. |
Images (1) Click the Picture to Zoom In
-

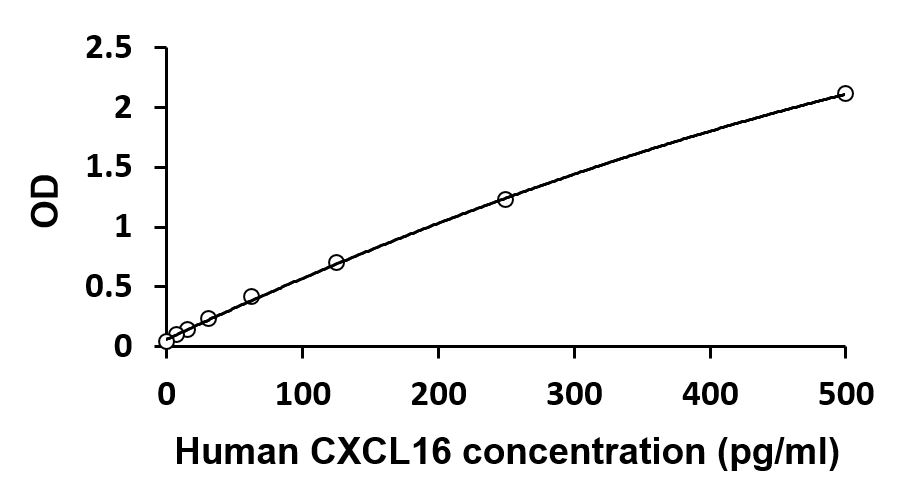

ARG80188 Human CXCL16 ELISA Kit standard curve image
ARG80188 Human CXCL16 ELISA Kit results of a typical standard run with optical density reading at 450 nm.
| Title | Download Link |
|---|---|
| ARG80188 Human CXCL16 ELISA Kit User's manual |
 Download
|
