ARG83519
arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1)
arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) for ELISA and Mouse
Component
| Cat No | Component Name | Package | Temp |
|---|---|---|---|
| ARG83519-01 | Antibody Coated Microplate | 8 X 12 strips | 4°C |
| ARG83519-02 | Standards Mixture | 3 vials | 4°C |
| ARG83519-03 | 10X Antibody Conjugate Mixture | 1200 μl | ≤ -20°C |
| ARG83519-04 | 40X HRP-Streptavidin solution | 300 µl | 4°C |
| ARG83519-05 | Standard/Sample Diluent Buffer | 30 ml | 4°C |
| ARG83519-06 | Antibody Diluent Buffer | 35 ml | 4°C |
| ARG83519-07 | 10X Wash Buffer | 50 ml | 4°C |
| ARG83519-08 | TMB substrate | 12 ml | 4°C (protect from light) |
| ARG83519-09 | STOP solution | 12 ml | 4°C |
| ARG83519-10 | Plate sealer | 3 strips | Room temperature |
Overview
| Product Description | ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) is an Enzyme Immunoassay kit for the quantification of IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1 and TNF alpha in Mouse serum, plasma and cell culture supernatants. See all Multiplex ELISA kits |
|---|---|
| Tested Reactivity | Ms |
| Tested Application | ELISA |
| Target Name | Inflammatory Cytokine |
| Conjugation | HRP |
| Conjugation Note | Substrate: TMB and read at 450 nm. |
| Sensitivity | IFN gamma: 15.6 pg/ml IL1 beta: 15.6 pg/ml IL6: 31.25 pg/ml IL17A: 7.81 pg/ml GM-CSF: 7.81 pg/ml TNF alpha: 15.6 pg/ml CXCL1: 15.6 pg/ml MCP1: 3.9 pg/ml |
| Sample Type | Serum, plasma and cell culture supernatants. |
| Standard Range | IFN gamma: 31.25 - 1000 pg/ml IL1 beta: 31.25 - 1000 pg/ml IL6: 62.5 - 2000 pg/ml IL17A: 15.625 - 500 pg/ml GM - CSF: 15.625 - 500 pg/ml TNF alpha: 31.25 - 1000 pg/ml CXCL1: 31.25 - 1000 pg/ml MCP1: 7.8 - 250 pg/ml |
| Sample Volume | 50 µl |
Application Instructions
| Assay Time | 4.5 hours |
|---|
Properties
| Form | 96 well |
|---|---|
| Storage Instruction | Store components at 4°C or -20°C. Keep microplate wells sealed in a dry bag with desiccants. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components. |
| Note | For laboratory research only, not for drug, diagnostic or other use. |
Bioinformation
| Gene Symbol | IFNG; IL1B; IL6; IL17A; CSF2; TNF; CXCL1; CCL2 |
|---|---|
| Highlight | Related Product: IFN gamma antibodies; IL1 beta antibodies; IL6 antibodies; IL17 antibodies; GM CSF antibodies; TNF alpha antibodies; CXCL1 antibodies; MCP1 antibodies; New ELISA data calculation tool: Simplify the ELISA analysis by GainData |
Images (9) Click the Picture to Zoom In
-

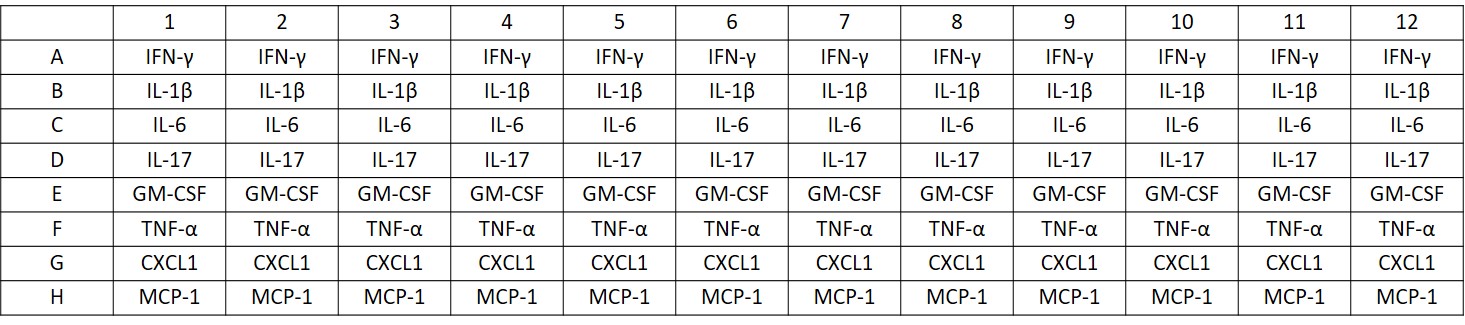

Antibodies Coating Pattern In Microtiter Plate of arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1)
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse IFN gamma run with optical density reading at 450 nm.
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse IL1 beta run with optical density reading at 450 nm.
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse IL6 run with optical density reading at 450 nm.
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image

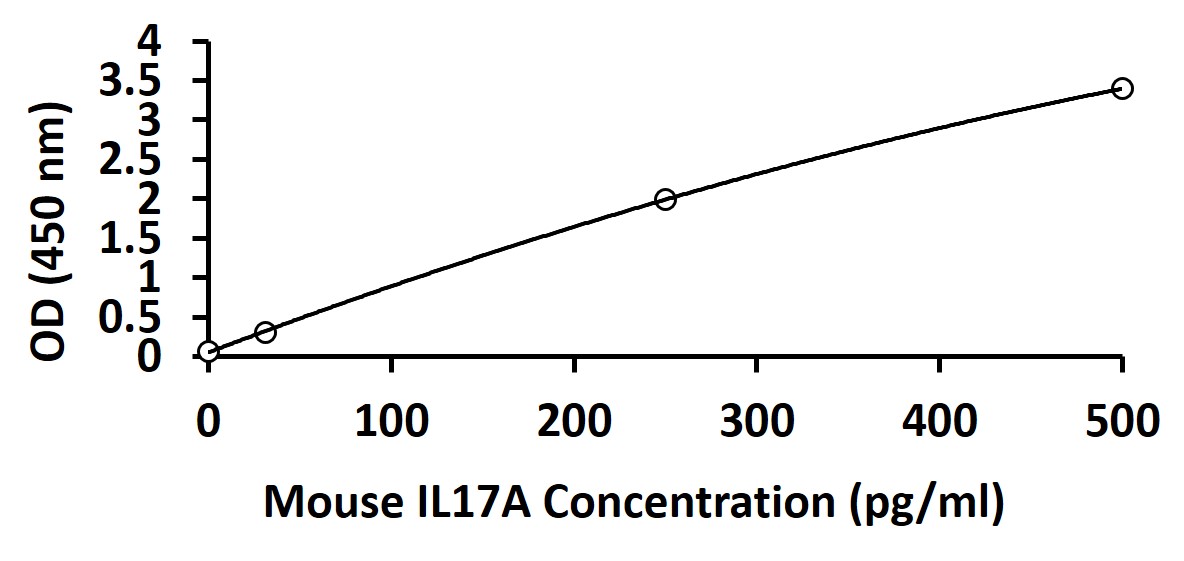

ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse IL17A run with optical density reading at 450 nm.
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse GM-CSF run with optical density reading at 450 nm.
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse TNF alpha run with optical density reading at 450 nm.
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse CXCL1 run with optical density reading at 450 nm.
-
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) standard curve image
ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) results of a typical standard for Mouse MCP1 run with optical density reading at 450 nm.
| Title | Download Link |
|---|---|
| ARG83519 arigoPLEX® Mouse Inflammatory Cytokine Multiplex ELISA Kit (IFN gamma, IL1 beta, IL6, IL17A, GM-CSF, TNF alpha, CXCL1, MCP1) User manual |
 Download
|
