ARG83349
arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta 1, PDGF BB, IL6, TNF alpha)
arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta 1, PDGF BB, IL6, TNF alpha) for ELISA and Mouse
Component
| Cat No | Component Name | Package | Temp |
|---|---|---|---|
| ARG83349-01 | Antibody Coated Microplate | 8 X 12 strips | 4°C |
| ARG83349-02 | Standard Mixture | 3 vials | 4°C |
| ARG83349-03 | 10X Antibody Conjugate Mixture | 1.2 ml | ≤ -20 °C |
| ARG83349-04 | 40X HRP-Streptavidin Solution | 300 μl | 4°C |
| ARG83349-05 | Standard / Sample Diluent buffer | 30 ml | 4°C |
| ARG83349-06 | Antibody Diluent buffer | 35 ml | 4°C |
| ARG83349-07 | 10X Wash Buffer | 50 ml | 4°C |
| ARG83349-08 | TMB substrate | 12 ml | 4°C (protect from light) |
| ARG83349-09 | STOP solution | 12 ml | 4°C |
| ARG83349-10 | Plate sealer | 3 adhesive strips | Room temperature |
Overview
| Product Description | ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta 1, PDGF BB, IL6, TNF alpha) is an Enzyme Immunoassay kit for the quantification of TGF beta 1, PDGF BB, IL6, TNF alpha in serum, plasma and cell culture supernatant. See all Multiplex ELISA kits |
|---|---|
| Tested Reactivity | Ms |
| Tested Application | ELISA |
| Target Name | Fibrotic |
| Conjugation | HRP |
| Conjugation Note | Substrate: TMB and read at 450 nm |
| Sensitivity | TGF beta1: 15.625 pg/ml PDGF BB: 15.625 pg/ml IL6: 15.625 pg/ml TNF alpha: 7.8125 pg/ml |
| Sample Type | Serum, plasma and cell culture supernatants. |
| Standard Range | TGF beta1: 31.25 - 2000 pg/ml PDGF BB: 31.25 - 2000 pg/ml IL6: 31.25 - 2000 pg/ml TNF alpha: 15.625 - 1000 pg/ml |
| Sample Volume | 50 µl |
Application Instructions
| Assay Time | 4.5 hours |
|---|
Properties
| Form | 96 well |
|---|---|
| Storage Instruction | Store components at 4°C or -20°C. Keep microplate wells sealed in a dry bag with desiccants. Do not expose test reagents to heat, sun or strong light during storage and usage. Please refer to the product user manual for detail temperatures of the components. |
| Note | For laboratory research only, not for drug, diagnostic or other use. |
Bioinformation
| Gene Symbol | TGFB1; PDGFB; IL6; TNF |
|---|---|
| Highlight | Related Product: TGF beta 1 antibodies; PDGF BB antibodies; IL6 antibodies; TNF alpha antibodies; Related news: Fibrotic Marker Multiplex ELISA Kits are launch; |
Images (5) Click the Picture to Zoom In
-
Antibodies Coating Pattern In Microtiter Plate of ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha)
-
ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) standard curve image

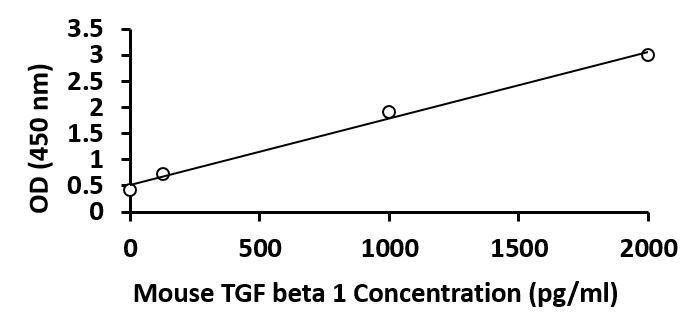

ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) results of a typical standard for Mouse TGF beta 1 run with optical density reading at 450 nm.
-
ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) standard curve image

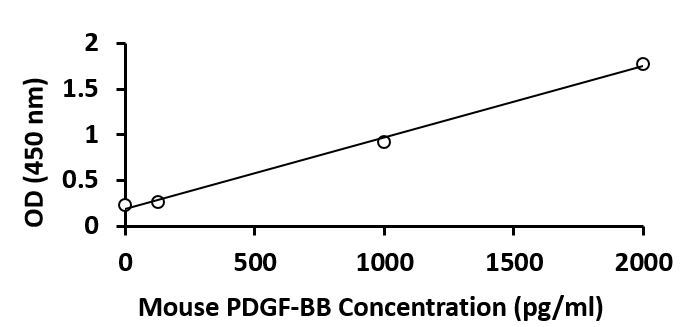

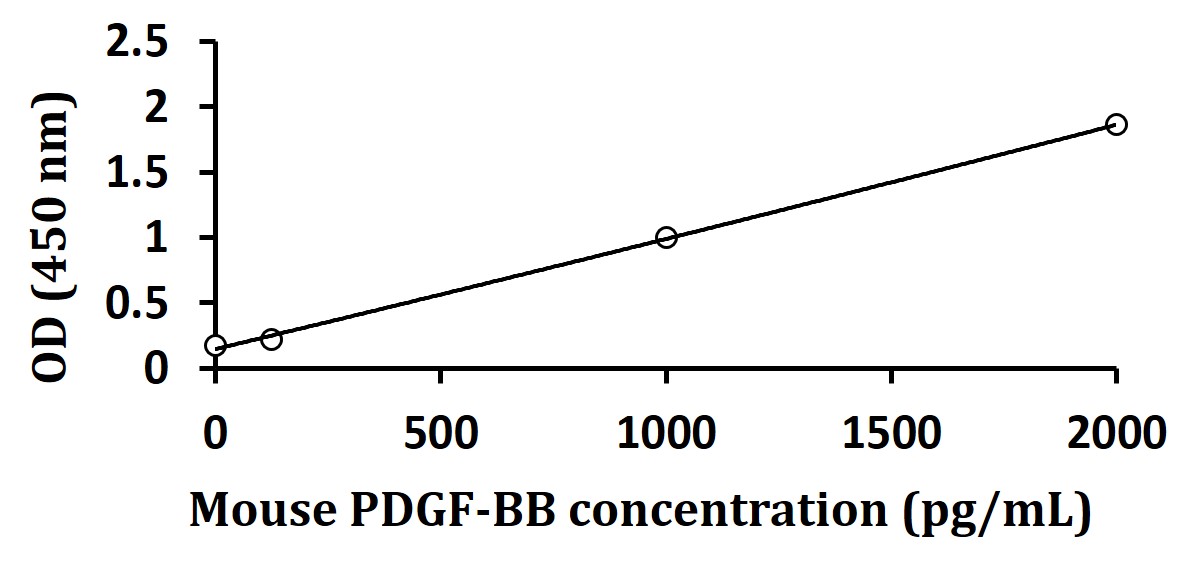

ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) results of a typical standard for Mouse PDGF BB run with optical density reading at 450 nm.
-
ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) standard curve image

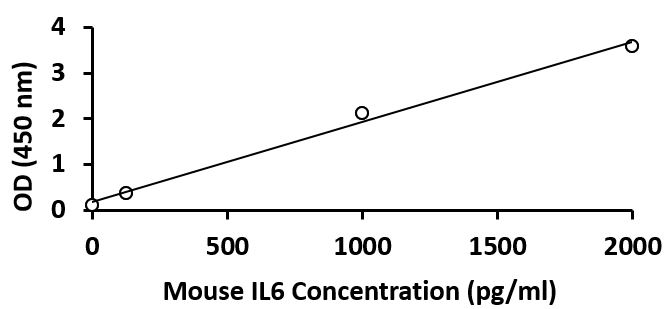

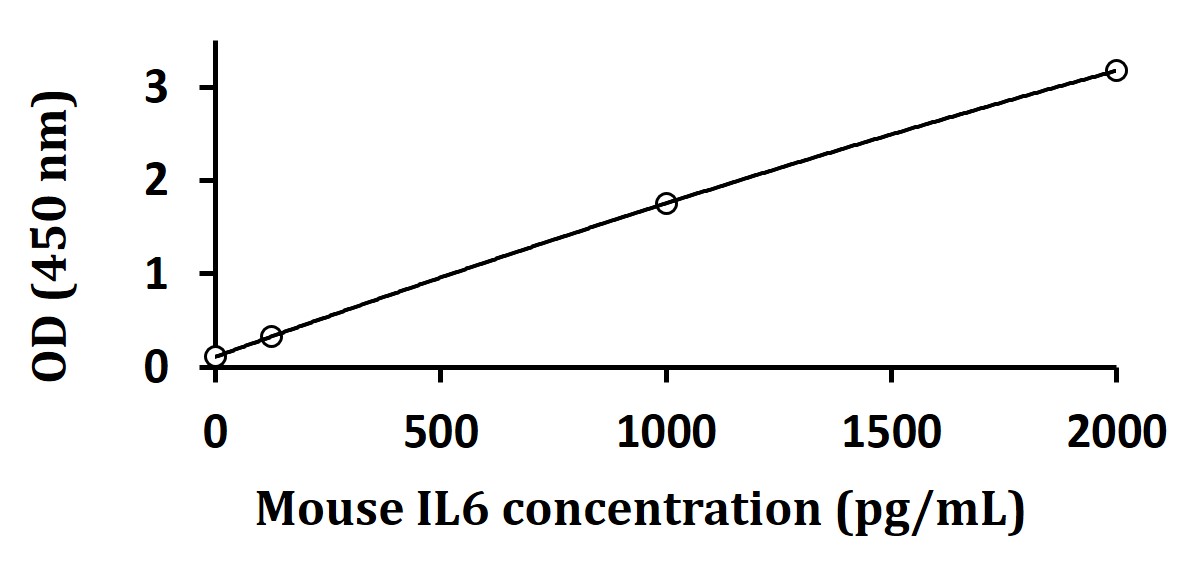

ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) results of a typical standard for Mouse IL6 run with optical density reading at 450 nm.
-
ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) standard curve image

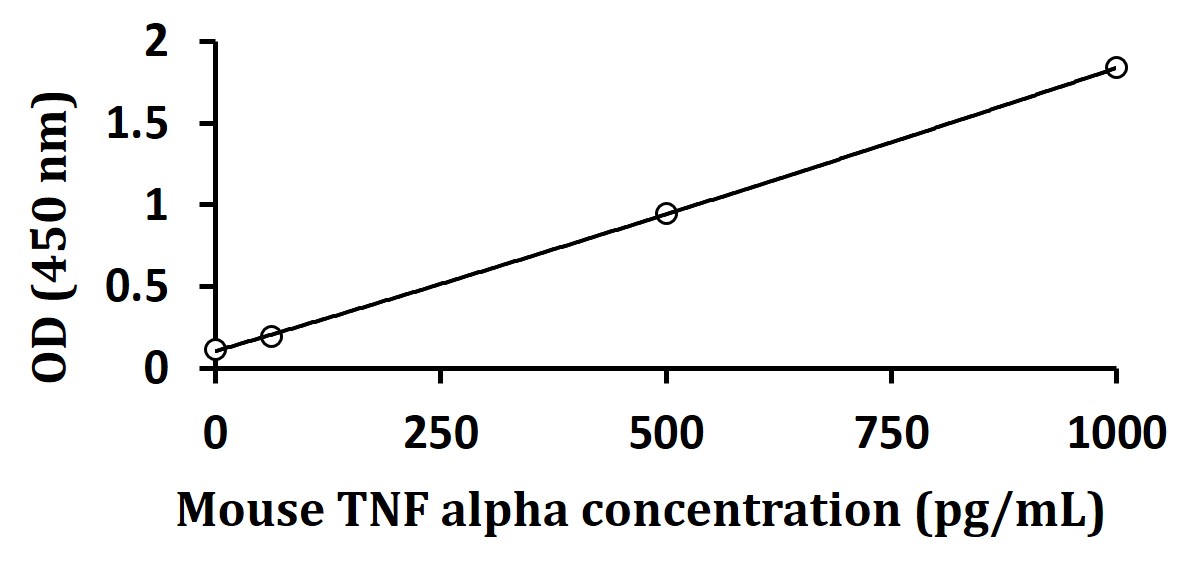

ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta1, PDGF BB, IL6, TNF alpha) results of a typical standard for Mouse TNF alpha run with optical density reading at 450 nm.
| Title | Download Link |
|---|---|
| ARG83349 arigoPLEX® Mouse Fibrotic Marker Multiplex ELISA Kit (TGF beta 1, PDGF BB, IL6, TNF alpha) User manual |
