ARG30331
NLRP3 Inflammasome Antibody Panel
Component
Cat No | Component Name | Host clonality | Reactivity | Application | Package |
---|---|---|---|---|---|
ARG40539 | anti-NALP3 / Cryopyrin antibody | Rabbit pAb | Hu, Ms, Rat | ICC/IF, IHC-P, WB | 20 μl |
ARG66211 | anti-ASC / TMS1 antibody | Rabbit pAb | Hu, Ms | WB | 20 μl |
ARG57293 | anti-Caspase 1 antibody | Rabbit pAb | Hu, Ms | ICC/IF, IHC-P, IP, WB | 20 μl |
ARG10112 | anti-GAPDH antibody [6C5] | Mouse mAb | Hu, Ms, Rat, AGMK, Bb, Cat, Chk, Dog, Fsh, Hm, Mk, Pig, Rb, Xenopus laevis, Zfsh | ELISA, ICC/IF, IHC-Fr, WB | 20 μg |
Overview
Product Description | NLRP3 Inflammasome Antibody Panel is an all-in-one solution to make the research of NLRP3 inflammasome easy and economic. This antibody panel comprises antibodies against the key components of NLRP3 inflammasome including NLRP3, ASC, and Caspase-1. Moreover, a loading control antibody against GAPDH is also included. This panel is the best solution for studying NLRP3 Inflammasome. |
---|---|
Target Name | NLRP3 Inflammasome |
Alternate Names | NLRP3 Inflammasome antibody; GAPDH antibody; NALP3 / Cryopyrin antibody; Caspase 1 antibody; ASC / TMS1 antibody |
Properties
Storage Instruction | For continuous use, store undiluted antibody at 2-8°C for up to a week. For long-term storage, aliquot and store at -20°C or below. Storage in frost free freezers is not recommended. Avoid repeated freeze/thaw cycles. Suggest spin the vial prior to opening. The antibody solution should be gently mixed before use. |
---|---|
Note | For laboratory research only, not for drug, diagnostic or other use. |
Bioinformation
Gene Full Name | Antibody Panel for NLRP3 Inflammasome |
---|---|
Highlight | Related news: Inflammasome & Pyroptosis Antibody Panels are released Exploring Antiviral Immune Response RIP1 activation and pathogenesis of NASH AMPK signaling regulates NLRP3 inflammation and pyroptosis |
Images (16) Click the Picture to Zoom In
-
ARG10112 anti-GAPDH antibody [6C5] WB image
Western blot: 1) U87-MG 2) HepG2 3) rat brain 4) rat heart 5) rat ovary stained with ARG10112 anti-GAPDH antibody [6C5] at 1:2000 dilution.
-
ARG10112 anti-GAPDH antibody [6C5] ICC/IF image
Immunofluorescence: 100% Methanol fixed (RT, 10 min) HeLa cells stained with ARG10112 anti-GAPDH antibody [6C5] (green) at 1:200 dilution.
Secondary antibody: ARG55393 Goat anti-Mouse IgG (H+L) antibody (FITC)
-
ARG57293 anti-Caspase 1 antibody WB image
Western blot: 10 µg of HeLa and 20 µg of Mouse brain lysates stained with ARG57293 anti-Caspase 1 antibody at 1:1000 dilution.
-
ARG40539 anti-NALP3 / Cryopyrin antibody ICC/IF image (Customer's Feedback)
Immunofluorescence:Humam conjunctival stained with ARG40539 anti-NALP3 / Cryopyrin antibody at 1:200 dilution and ARG54745 Goat anti-Rabbit IgG (H+L) antibody (FITC) at 1:500 dilution.
-
ARG57293 anti-Caspase 1 antibody WB image
Western blot: 25 µg of cell lysate from PMA treated THP-1 cells were stained with ARG57293 anti-Caspase 1 antibody at 1:1000 dilution.
-
ARG57293 anti-Caspase 1 antibody ICC/IF image
Immunofluorescence: Raw264.7 cells stained with ARG57293 anti-Caspase 1 antibody at 1:100 dilution.
-
ARG57293 anti-Caspase 1 antibody IHC-P image
Immunohistochemistry: Paraffin-embedded Mouse kidney tissue stained with ARG57293 anti-Caspase 1 antibody at 1:100 dilution.
-
ARG40539 anti-NALP3 / Cryopyrin antibody IHC-P image
Immunohistochemistry: Paraffin-embedded Mouse lung stained with ARG40539 anti-NALP3 / Cryopyrin antibody at 1:100 dilution.
-

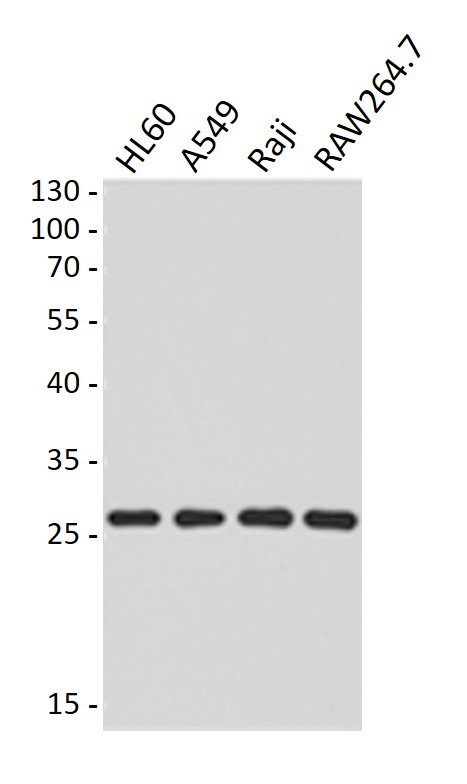

ARG66211 anti-ASC / TMS1 antibody WB image
Western blot: 40 µg of HL60, A549, Raji and RAW264.7 cell lysates stained with ARG66211 anti-ASC / TMS1 antibody at 1:500 dilution.
-
ARG40539 anti-NALP3 / Cryopyrin antibody WB image
Western blot: 25 µg of Mouse thymus lysate stained with ARG40539 anti-NALP3 / Cryopyrin antibody at 1:1000 dilution.
-
ARG57293 anti-Caspase 1 antibody IP image
Immunoprecipitation: 200 µg extracts of THP-1 cells Immunoprecipitated and stained with ARG57293 anti-Caspase 1 antibody at 1:1000 dilution.
-
ARG10112 anti-GAPDH antibody [6C5] WB image
Western blot: 1) U87-MG 2) MCF-7 3) A549 4) DU145 5) SW480 6) rat brain 7) rat stomach 8) rat ovary stained with ARG10112 anti-GAPDH antibody [6C5] at 1:5000 dilution.
-
ARG10112 anti-GAPDH antibody [6C5] WB image
Western blot: Mouse samples stained with ARG10112 anti-GAPDH antibody [6C5] at 1:1000 dilution.
From Yun-Yun Li et al. Int J Biol Sci (2022), doi: 10.7150/ijbs.68224, Fig. 5. C.
-
ARG10112 anti-GAPDH antibody [6C5] WB image
Western blot: Porcine kidney stained with ARG10112 anti-GAPDH antibody [6C5].
From Jianni Huang et al. Front Cell Dev Biol (2022), doi: 10.3389/fcell.2022.899869, Fig. 2. E.
-
ARG10112 anti-GAPDH antibody [6C5] WB image
Western blot: pAFs, AcoSV40, and AcoSI-1 stained with ARG10112 anti-GAPDH antibody [6C5] at 1:5000 dilution.
From Michele N Dill et al. PLoS One. (2023), doi: 10.3389/fcell.2022.899869, Fig. 2. C.
-
ARG10112 anti-GAPDH antibody [6C5] WB image
Western blot: 1) MCF-7 2) DU-145 3) A549 4) H1299 5) HCT116 6) HepG2 7) HUVEC stained with ARG10112 anti-GAPDH antibody [6C5] at 1:1000 dilution.
Specific References
