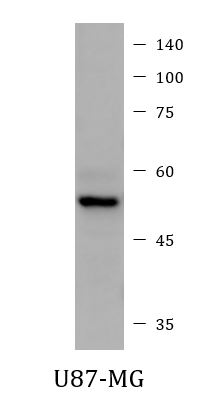

ARG65614 anti-Beclin 1 antibody WB image

Western blot: 20 µg of U87-MG cell lysate stained with ARG65614 anti-Beclin 1 antibody at 1:1000 dilution.

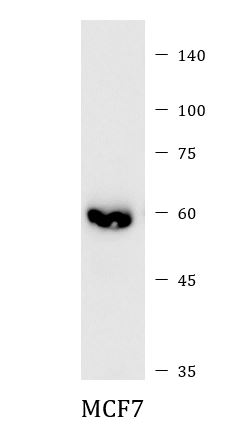

ARG55040 anti-SQSTM1 / p62 antibody WB image

Western blot: 20 µg of MCF7 cell lysate stained with ARG55040 anti-SQSTM1 / p62 antibody at 1:1000 dilution.

ARG55799 anti-LC3B antibody WB image (Customer's Feedback)

Western blot: HeLa cells untreated or treated with Chloroquine. 20 µg of cell lysates stained with ARG55040 anti-SQSTM1 / p62 antibody and ARG55799 anti-LC3B antibody at 1:1000 dilution.

An anti-GAPDH antibody used as a positive control.

ARG55040 anti-SQSTM1 / p62 antibody ICC/IF image

Immunofluorescence: U2OS cells stained with ARG55040 anti-SQSTM1 / p62 antibody at 1:100 dilution.

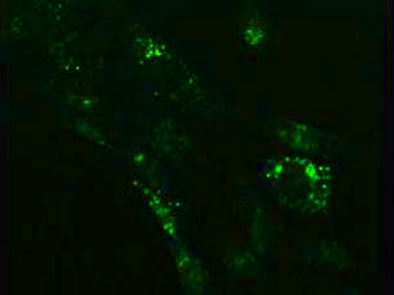

ARG55799 anti-LC3B antibody ICC/IF image

Immunofluorescence: NIH/3T3 cells treated with Chloroquine (50 μM, 37°C for 20 hours). Cells were stained with ARG55799 anti-LC3B antibody at 1:100 dilution.

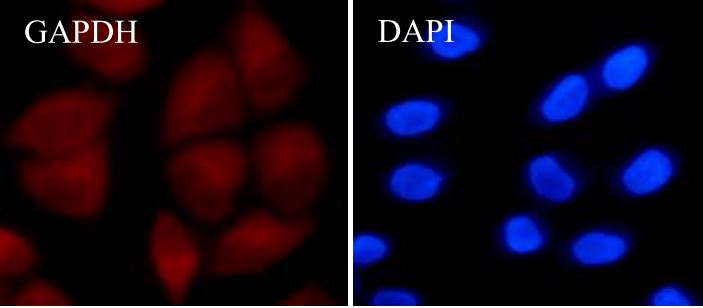

ARG66330 anti-GAPDH antibody [SQab1878] ICC/IF image

Immunofluorescence: HeLa cells were fixed with 4% paraformaldehyde for 30 min at RT, permeabilized with 0.1% Triton X-100 for 10 min at RT then blocked with 10% goat serum for 30 min at RT. Cells were stained with ARG66330 anti-GAPDH antibody [SQab1878] (red) at 4°C. DAPI (blue) was used as the nuclear counter stain.

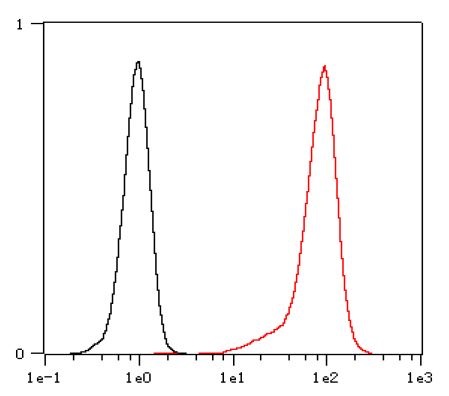

ARG66330 anti-GAPDH antibody [SQab1878] FACS image

Flow Cytometry: HeLa cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% TritonX-100 for 15 min. The were stained with ARG66330 anti-GAPDH antibody [SQab1878] (red) in 1x PBS/1% BSA for 30 min at RT, followed by Alexa Fluor® 488 labelled secondary antibody. Unlabelled sample (black) was used as a control. .

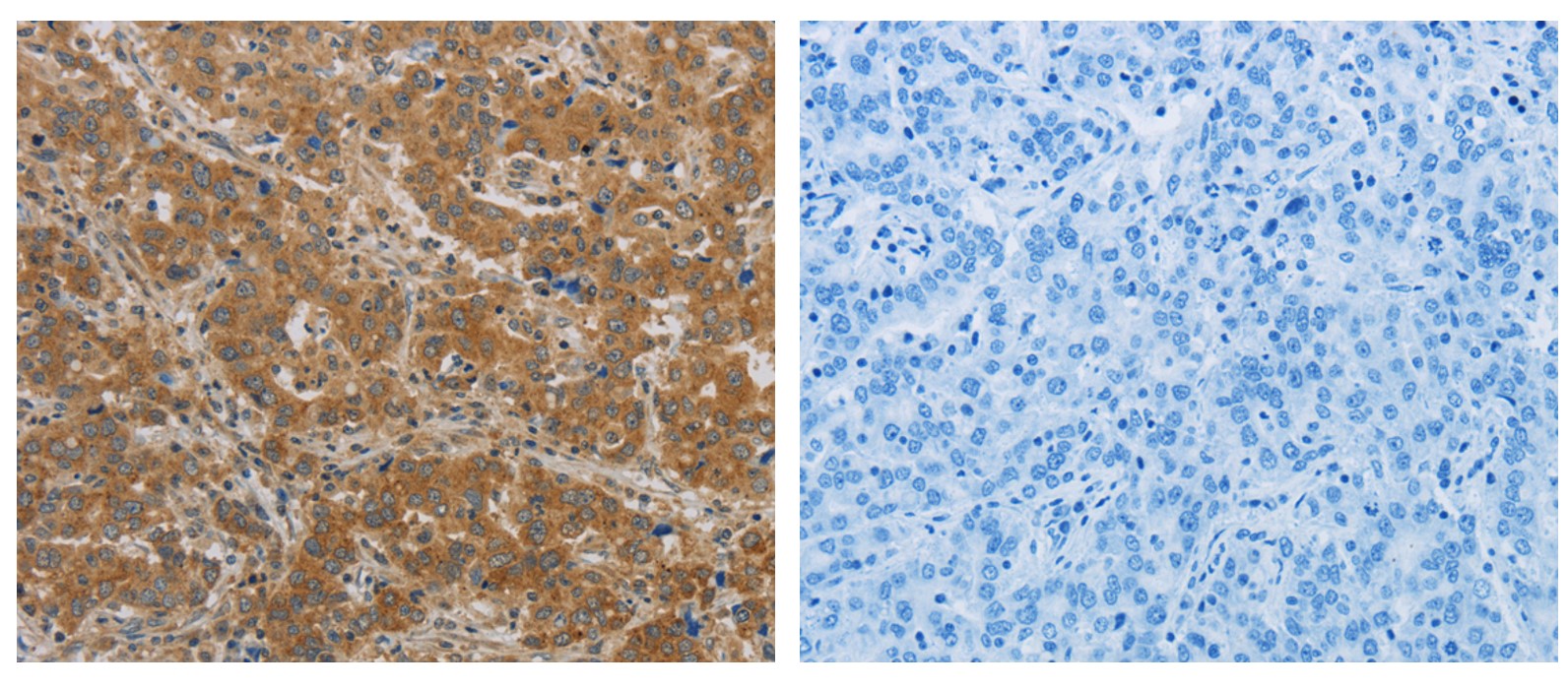

ARG65614 anti-Beclin 1 antibody IHC-P image

Immunohistochemistry: Paraffin-embedded Human liver cancer tissue stained with ARG65614 anti-Beclin 1 antibody (left) at 1/20 dilution, or the same antibody preincubated with antigen (right). (Original magnification: X200).

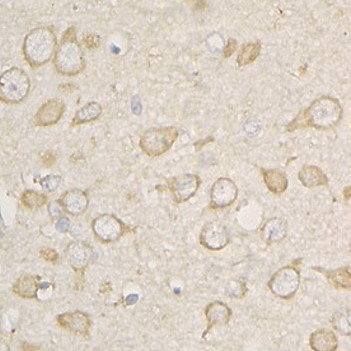

ARG55040 anti-SQSTM1 / p62 antibody IHC-P image

Immunohistochemistry: Paraffin-embedded Rat brain stained with ARG55040 anti-SQSTM1 / p62 antibody at 1:100 dilution.

ARG55799 anti-LC3B antibody IHC-P image

Immunohistochemistry: Paraffin-embedded Rat kidney stained with ARG55799 anti-LC3B antibody at 1:100 dilution.

ARG66330 anti-GAPDH antibody [SQab1878] IHC-P image

Immunohistochemistry: Formalin-fixed and paraffin-embedded prostate cancer tissue stained with ARG66330 anti-GAPDH antibody [SQab1878]. Antigen Retrieval: Heat mediated was performed using Tris/EDTA buffer pH 9.0.

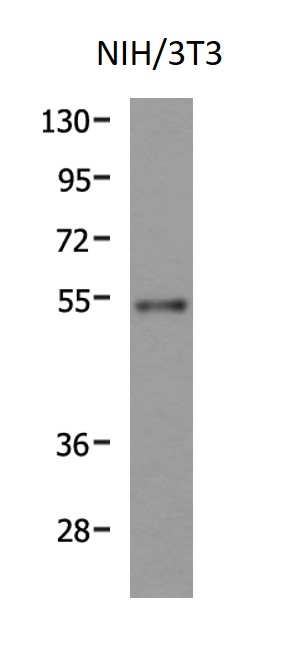

ARG65614 anti-Beclin 1 antibody WB image

Western blot: 40 µg of NIH/3T3 cell lysate stained with ARG65614 anti-Beclin 1 antibody at 1:700 dilution.

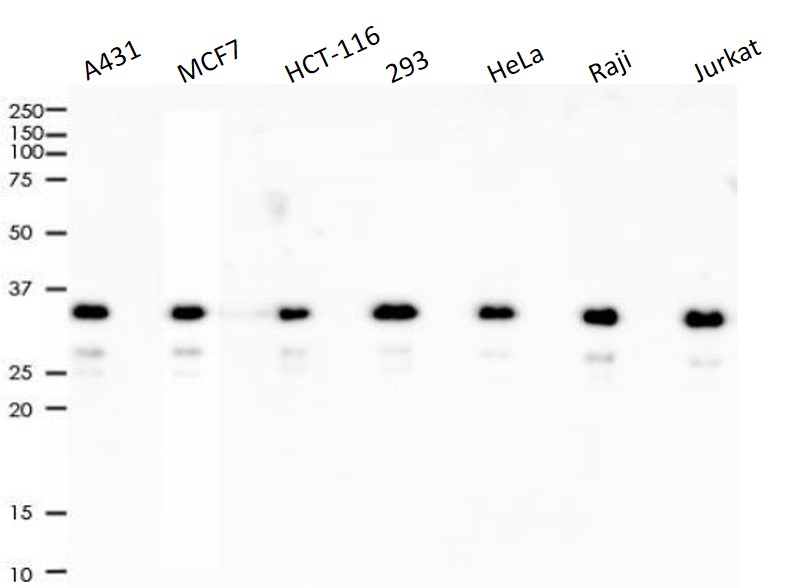

ARG66330 anti-GAPDH antibody [SQab1878] WB image

Western blot: 2 µg of A431, MCF7, HCT-116, 293, HeLa, Raji and Jurkat cell lysates stained with ARG66330 anti-GAPDH antibody [SQab1878].

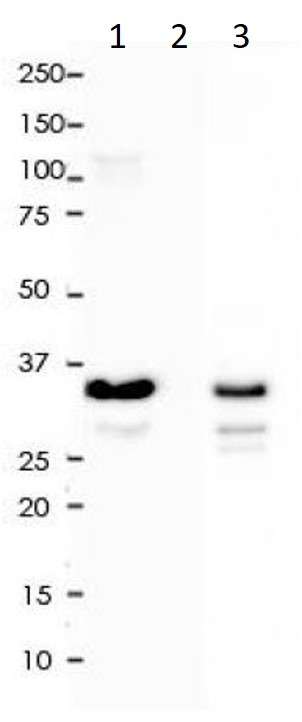

ARG66330 anti-GAPDH antibody [SQab1878] IP image

Immunoprecipitation: 0.1 mg of HeLa whole cell lysate immunoprecipitated and stained with ARG66330 anti-GAPDH antibody [SQab1878]. 1) ARG66330 IP in HeLa whole cell lysate, 2) PBS instead of ARG66330 in HeLa whole cell lysate, and 3) HeLa whole cell lysate, 2 µg (input).

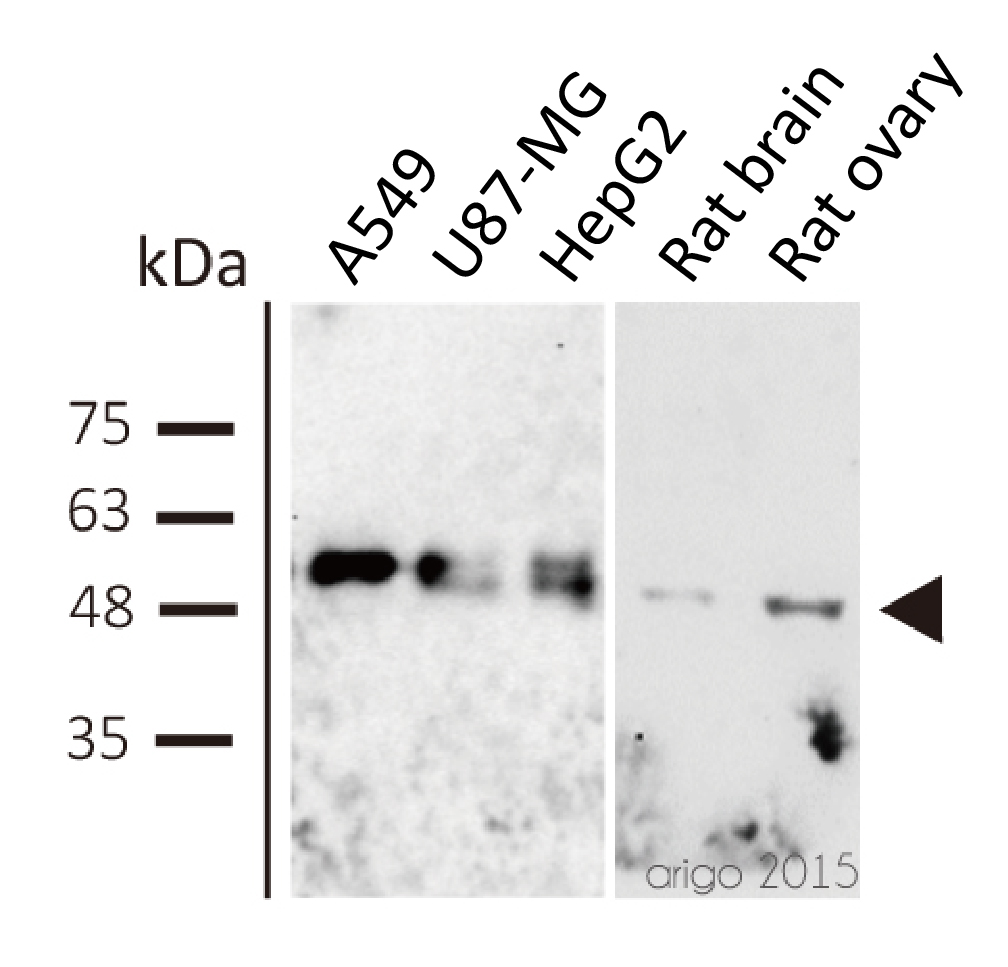

ARG65614 anti-Beclin 1 antibody WB image

Western blot: 30 µg of A549, U87-MG, HepG2, Rat brain, and Rat ovary lysates stained with ARG65614 anti-Beclin 1 antibody at 1:500 dilution.

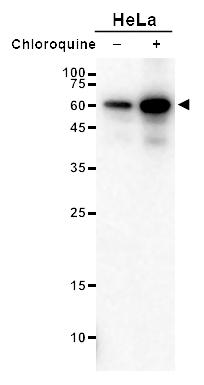

ARG55040 anti-SQSTM1 / p62 antibody WB image

Western blot: HeLa cells untreated or treated with Chloroquine. 20 µg of cell lysates stained with ARG55040 anti-SQSTM1 / p62 antibody at 1:1000 dilution.

ARG65614 anti-Beclin 1 antibody WB image

Western blot: 20 µg of HeLa cell lysate stained with ARG65614 anti-Beclin 1 antibody at 1:500 dilution.

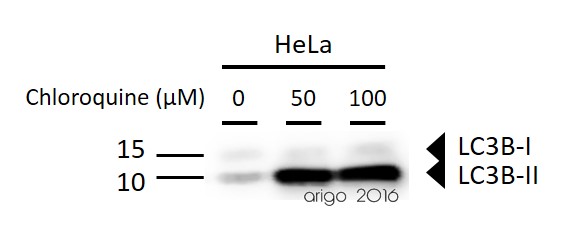

ARG55799 anti-LC3B antibody WB image

Western blot: 30 µg of HeLa untreated or treated with Chloroquine at 50 µM, 100 µM (18 hr). The bolts stained with ARG55799 anti-LC3B antibody at 1:1000 dilution.

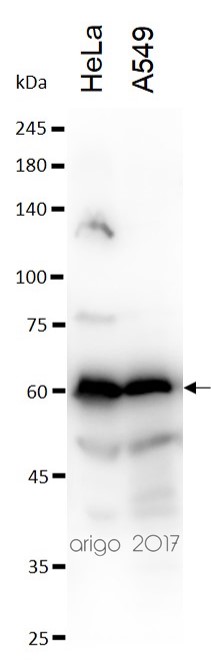

ARG55040 anti-SQSTM1 / p62 antibody WB image

Western blot: 30 µg of HeLa and A549 cell lysates stained with ARG55040 anti-SQSTM1 / p62 antibody at 1:500 dilution.

ARG65614 anti-Beclin 1 antibody IHC-P image

Immunohistochemistry: Paraffin-embedded Human colon cancer tissue stained with ARG65614 anti-Beclin 1 antibody (left) at 1/70 dilution, or the same antibody preincubated with antigen (right). (Original magnification: X200).

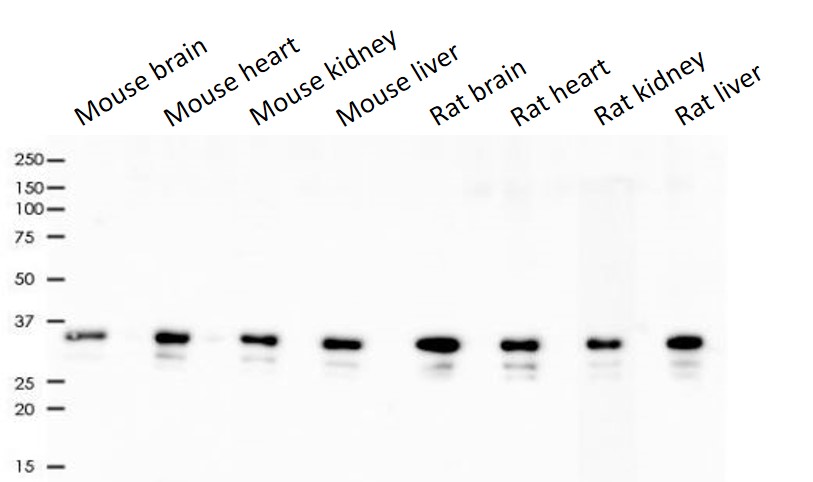

ARG66330 anti-GAPDH antibody [SQab1878] WB image

Western blot: 2 µg of Mouse brain, Mouse heart, Mouse kidney, Mouse liver, Rat brain, Rat heart, Rat kidney and Rat liver lysates stained with ARG66330 anti-GAPDH antibody [SQab1878].

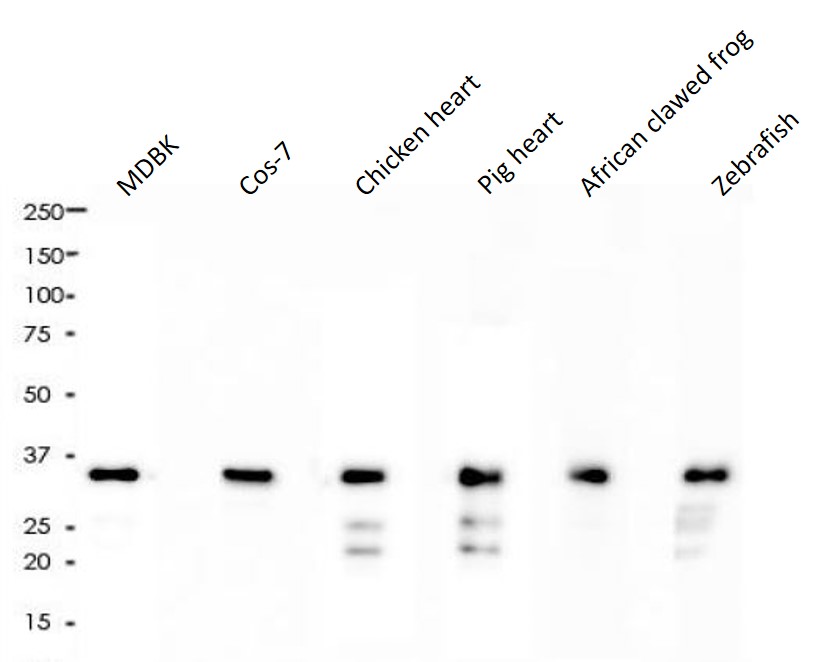

ARG66330 anti-GAPDH antibody [SQab1878] WB image

Western blot: 2 µg of MDBK, Cos-7, Chicken heart, Pig heart, African clawed frog and Zebrafish lysates stained with ARG66330 anti-GAPDH antibody [SQab1878].

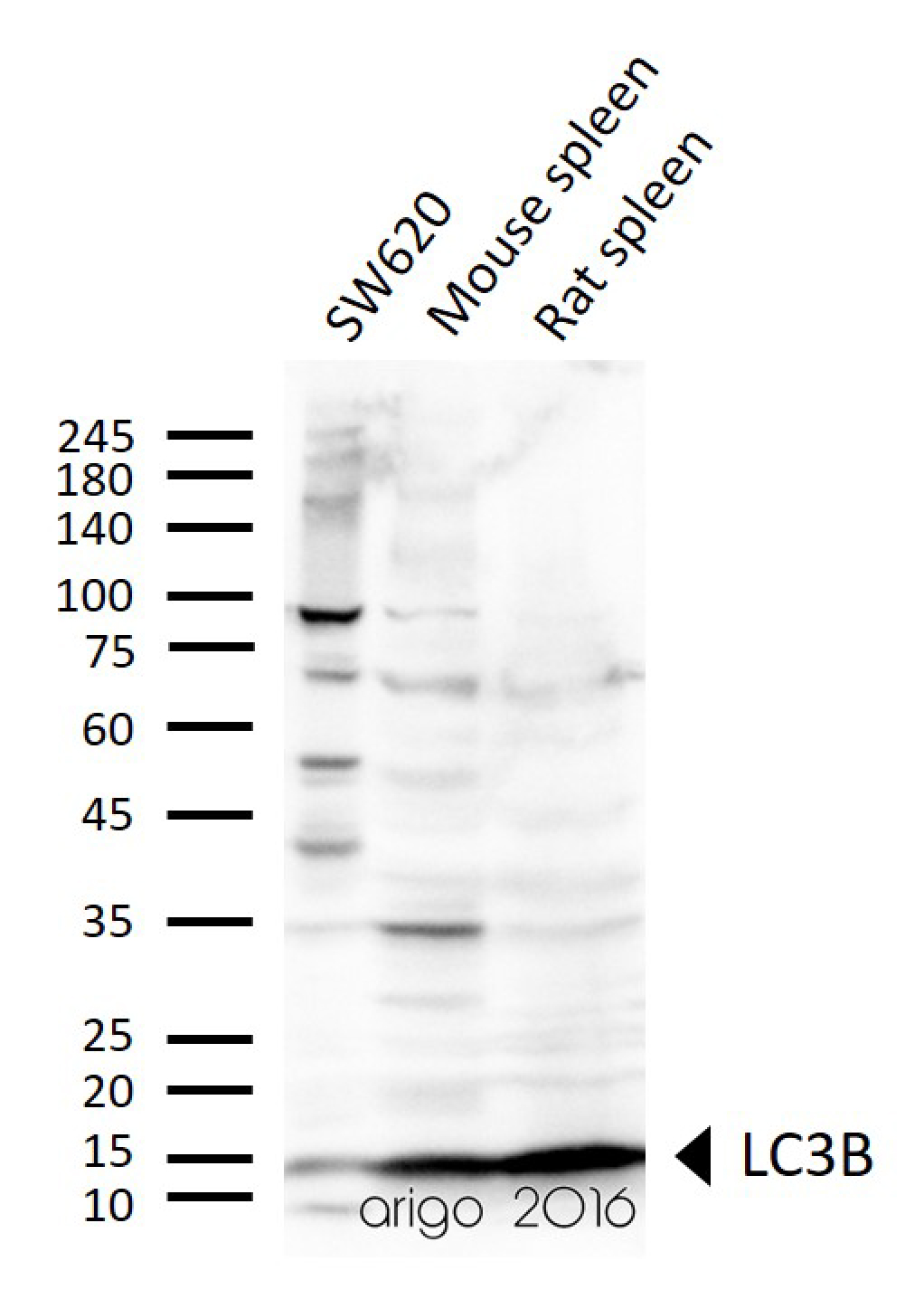

ARG55799 anti-LC3B antibody WB image

Western blot: 30 µg of SW620, Mouse spleen, and Rat spleen lysates stained with ARG55799 anti-LC3B antibody at 1:1000 dilution.
